The LED frame panel is a new extended version of the LED panels. The improving internal and external lattice designs make the original product richer and more versatile.
The brightness of the LED frame panel is high. The total lumen output can reach up to 100lm/W, but it still emits a soft glow that is easy on the eyes.
This frame light has different wattages: 36W, 40W, 48W, 64W, and 72W. It can meet the lighting needs of different environments.

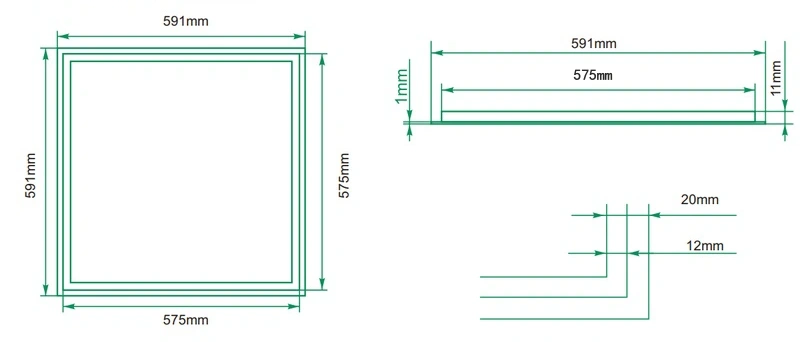

Dimension | 591*591*11mm |
Wattage | 36W/40W/48W/64W/72W |
Chip | 2835 with PMMA Lenses |
Driver | CE (EMC/LVD) |
PF | >0.9 |
Input Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | ＞100lm/W |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
Warranty | 3years |
Working Temperature | -20-45℃ |
MOQ | 200pcs |
Packing | 1pc/brown inner box; 10pcs/brown master carton |
Accessories | 4pcs of PP corner protector; one page of instructions |
The following certifications are obtained: CE (EMC/LVD), RoHS, UL, GB, and SAA.

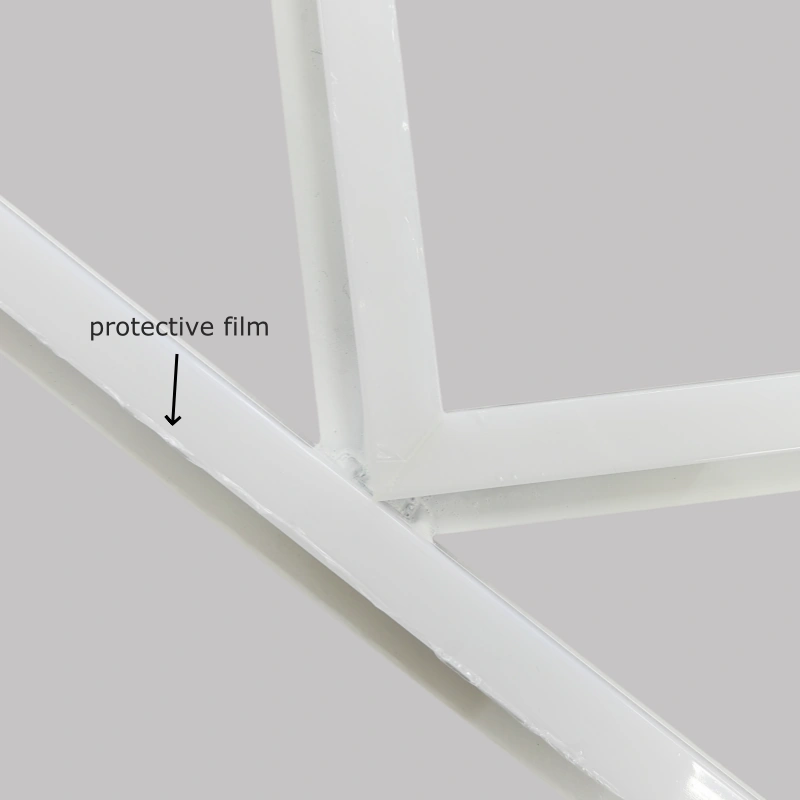

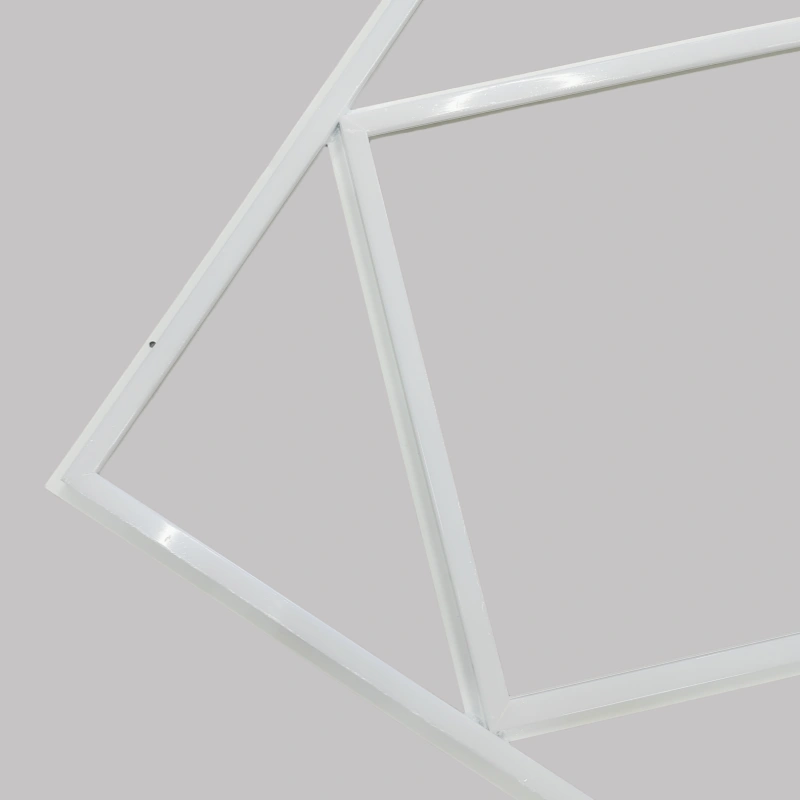

1. Aluminum Frame: Utilizes a heavy-duty aluminum frame that is welded into a single piece. The LED frame panel's construction is sturdy. It provides both durability and a premium look. The frame offers high strength, stability, good heat dissipation, and a substantial weight.
2. Diffusion Plate: Made from PC material, this diffusion plate is of superior quality compared to ordinary PP. It ensures symmetrical light distribution. Our factory is responsible for cutting the diffusers, which facilitates better quality control.
3. LED Chips: Features high-quality 2835 LED chips along with PMMA optical lenses. This combination offers high color rendering, and high lumen output, and the SDCM is less than 5.
4. Manufacturing Advantages: We possess significant advantages in early development, assembly experience, and pricing. From cutting the diffusion plates to adhering to the LED strips, we utilize our own machines. It ensures stringent quality control throughout the process.
1. The design is modern and simple, aligning with the ever-changing aesthetics and needs of the market.
2. Although the LED frame panel has a smaller luminous surface, it is well-designed, offering high lumens and brightness.
3. The service life of the product is long, with a projected duration of up to 104,000 hours based on statistical data.
4. LED frame lights offer exceptional energy efficiency. It can help you save up to 80% on your electricity bill compared to regular LED panels.
5. Routine maintenance is not necessary.
6. Compared to conventional LED panel lights, frame lights are overall lighter and easier to transport and install.

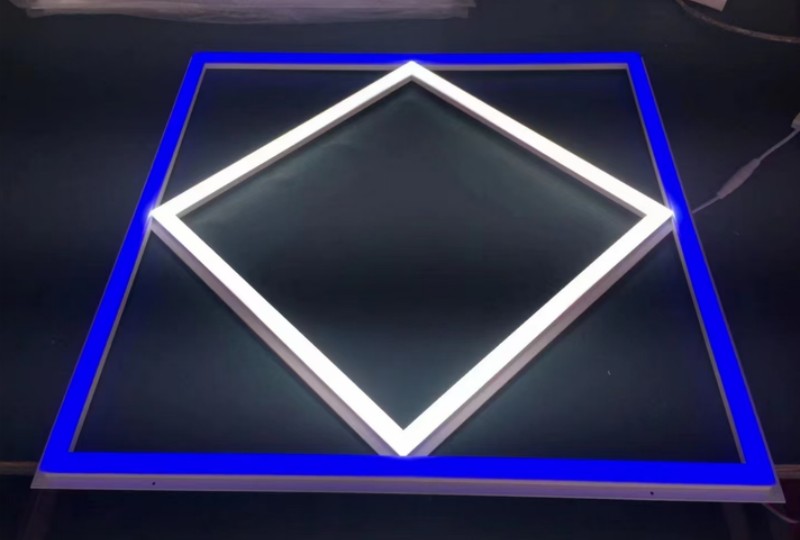

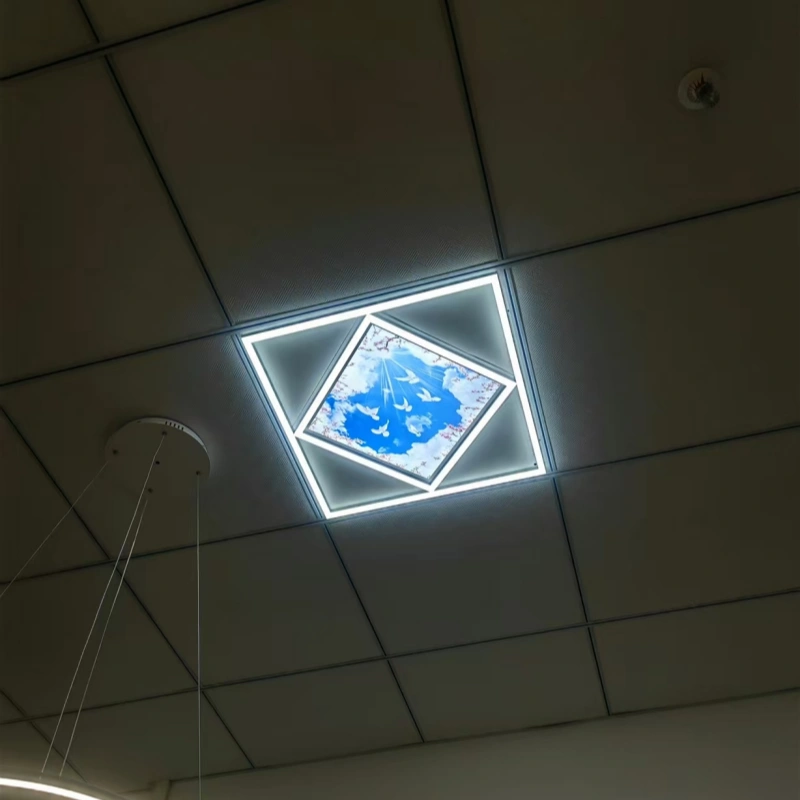

1. The combination of internal and external lighting creates new opportunities for technological innovation. You can customize the inner and outer frames with vibrant LED chip colors to beautifully enhance any installation environment.
For example, options include blue, red, green, and other colored chips, with blue being the most common choice. You can refer to the following figures for examples of the installation effects.

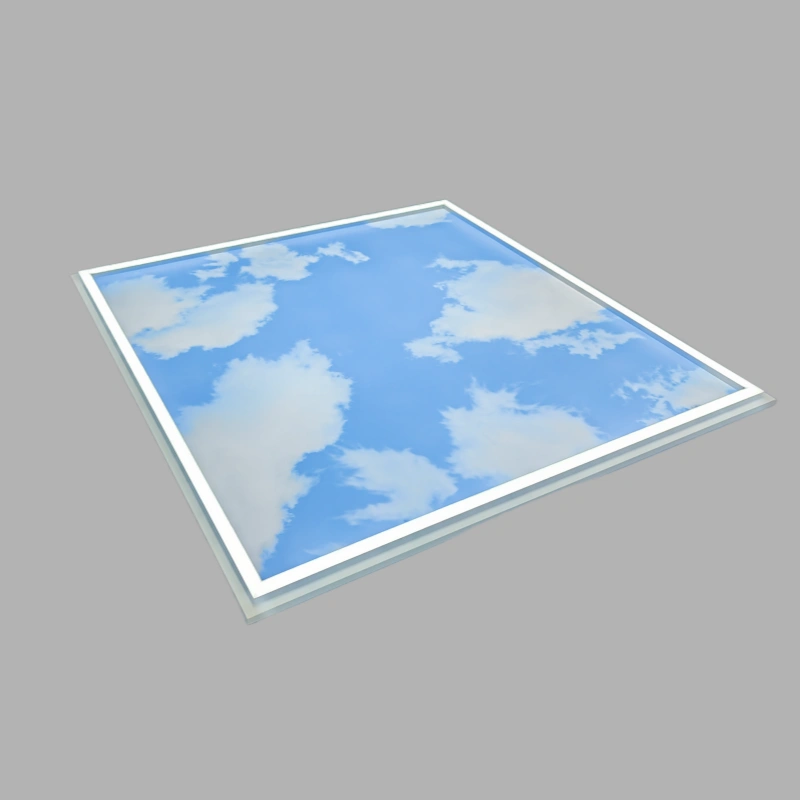

2. From the lighting effects of LED Frame lights and the blue sky panels, We have developed a new product, shown below:
Commercial, residential, or public facilities include offices, lobbies, hallways, classrooms, conference rooms, hotels, schools, libraries, showrooms, workshops, and healthcare facilities.

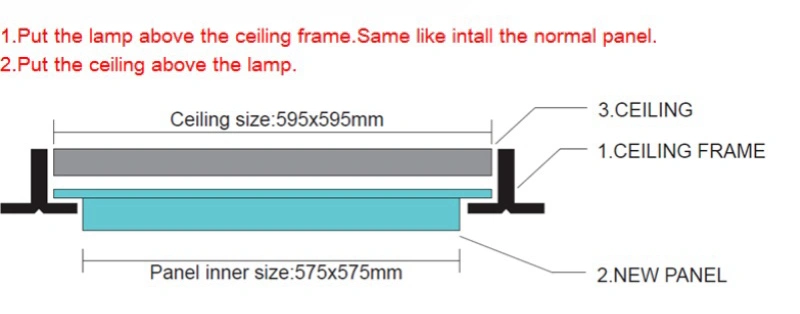

The LED frame panel can operate at temperatures between -20°C and 45°C. The installation diagram is as follows:
Supply capacity: 96000 pcs/month
Delivery time: 35 - 40 days
Place of origin: Zhejiang, China
Port of loading: Shanghai or Ningbo port
Services：
1. Your inquiry regarding our products or prices will be answered within 24 hours.
2. You can reliably track your orders with Tangtang Lighting at any time.
3. Your sales area, design ideas, and private information are protected.
4. Both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) are acceptable.
Materials: Aluminum and PC
