Our company is working on the LED frame panel and is excited to introduce new and innovative products. As a manufacturer, we have never stopped exploring LED frame lights.
The LED frame panel's aesthetic appeal makes it suitable for various environments. What positive effects can be achieved by combining the LED frame panel with the LED panel? So we began to design and prototype until this product appeared.

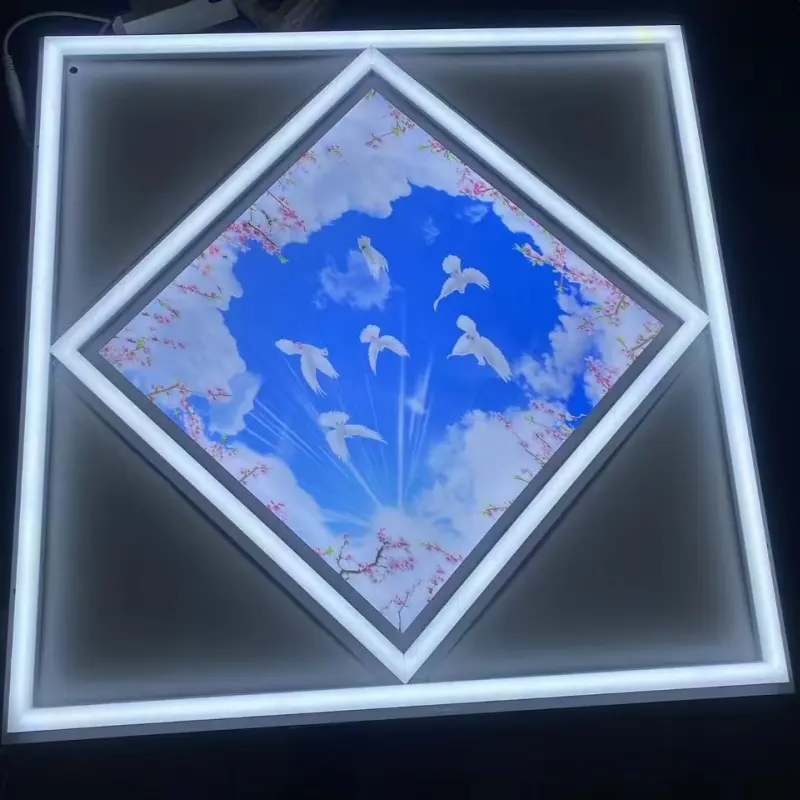

Based on the original LED frame panel, we combined the blue sky LED panel with it.
It can be said that the two serve as mutual foils for one another. The bright LED frame panel makes the blue sky LED panel look more colourful and realistic. By adding the blue sky, the LED frame light becomes more vibrant and gets a larger area that shines brightly. Blue Sky series provides wireless possibilities for new products.
Dimension | 595*595*50mm |
Item | LED frame panel |
Wattage | 40W |
LED Chip: | Epistar 2835 3V 100mA + Jingrui2835 9V 100mA |
Driver | TUV CE (EMC/LVD) |
Diffuser Plate | PC+PS |
PF | >0.9 |
Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 4000lm |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
UGR | 22 |
Beam Angle | 120° |
Warranty | 3years |
Life Time | 30000hrs |
Working Temperature | -20-45℃ |
MOQ | 200pcs |
Packing | 1 pc / brown inner box; 5 pcs / brown master carton |
Packing Size | 63X30X64cm |
Accessories | 4pcs of foam corner protector; one page of instructions |
CE (EMC/LVD), RoHS, UL, GB, and SAA.
1. It features a novel and attractive design, demonstrating significant market potential and is suitable for a variety of installation environments.
2. It is designed with multiple LED chips, providing a wattage range that enhances the overall lighting effect. The wattage range extends from 36W to 72W.
3. By combining the blue sky, this LED frame panel features a larger luminous area than ordinary frame lights.
4. The colour temperature of the LED chip can be customized from 3000K, 4000K, and 6500K to GRB or dimmable CCT. The internal blue sky pattern can be customized based on samples. Different patterns significantly influence lighting effects and are more attention-grabbing.

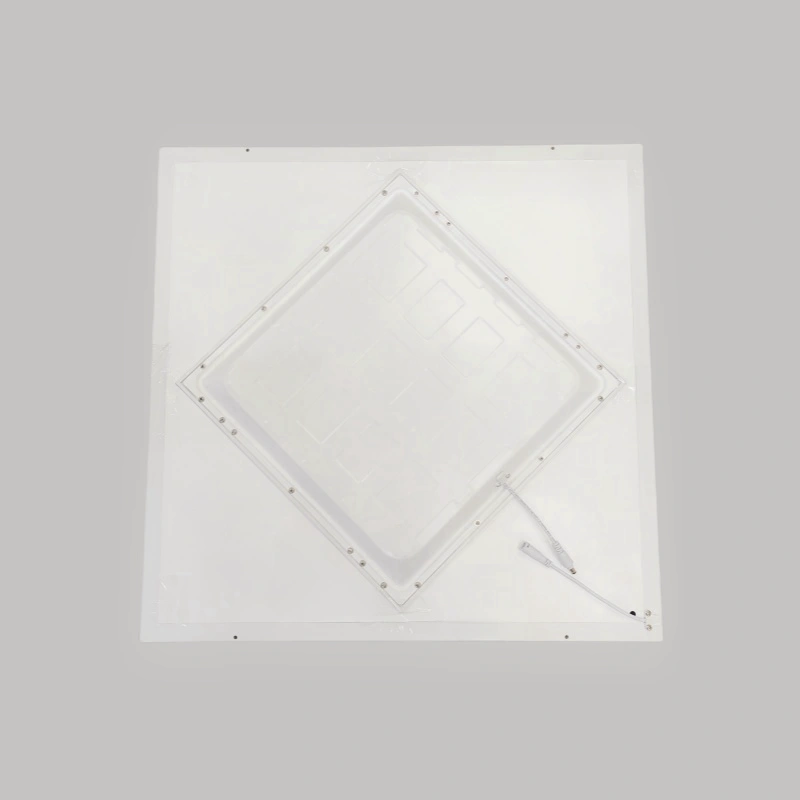

5. The LED frame panel features two outlets but connects to one driver. The installation is easy and requires minimal maintenance afterwards.
1. LED Frame Panel Manufacturer: With more than 20 years of experience in lighting manufacturing and development, our company has accumulated valuable expertise. We assist customers in developing new products, enhancing existing products, and reducing costs.
We are one of the earliest manufacturers to develop and produce LED frame panels. Our engineers and workers are well-versed in this product. It allows us to efficiently address any issues or customization requests that may arise. We ensure stable production, competitive pricing, high-quality workmanship, and fast delivery.
2. Supply Chain Stability: Since 2003, we have developed a mature and reliable network of suppliers. We can quickly and effectively adjust the diffusion plate and drive components. This helps us meet our customers' needs and ensure timely deliveries.
3. Independent Production: Unlike many companies that outsource early steps for LED frame panels, we keep control over quality. We complete 90% of the production processes in-house. Our facility has a diffusion plate cutting machine, a glue machine, and a patch machine.
Commercial, residential, or public facilities include offices, lobbies, hallways, classrooms, conference rooms, hotels, schools, libraries, showrooms, workshops, and healthcare facilities.
Supply capacity: 96000 pcs/month
Delivery time: 35 - 40 days
Place of origin: Zhejiang, China
Port of loading: Shanghai or Ningbo port
Services：
1. We will answer your inquiry or other questions within 24 hours.
2. You can reliably track your orders with Tangtang Lighting at any time.
3. Your sales area, design ideas, and private information are protected.
4. Both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) are acceptable.
Materials: Aluminum PC PS
