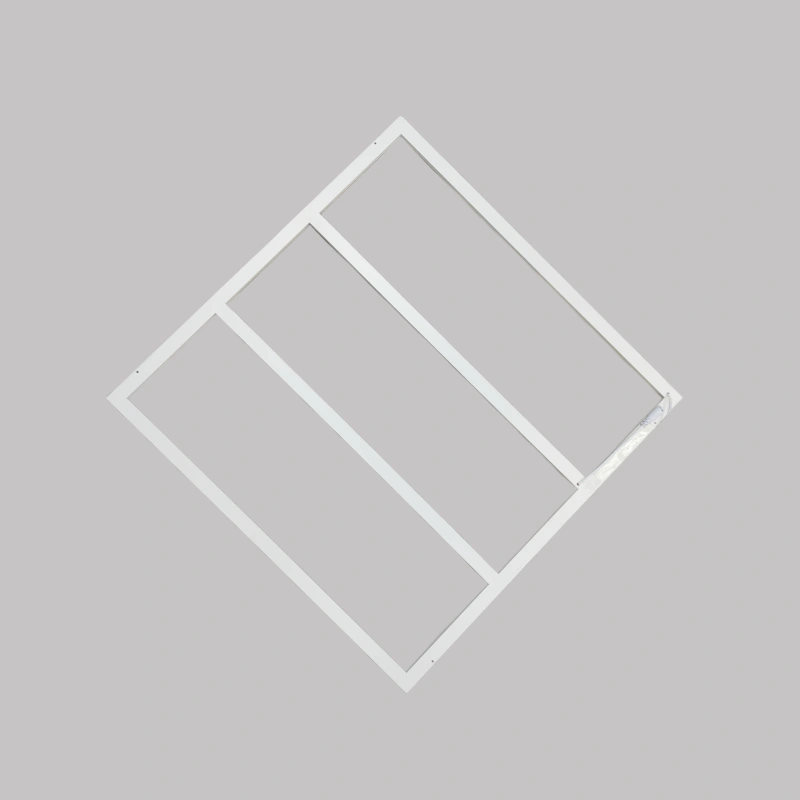

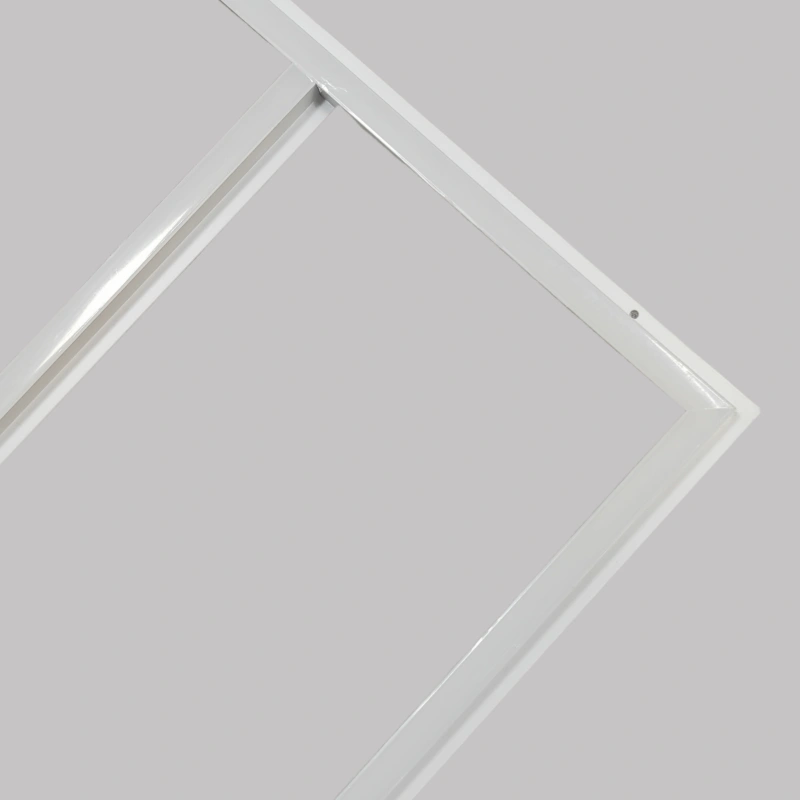

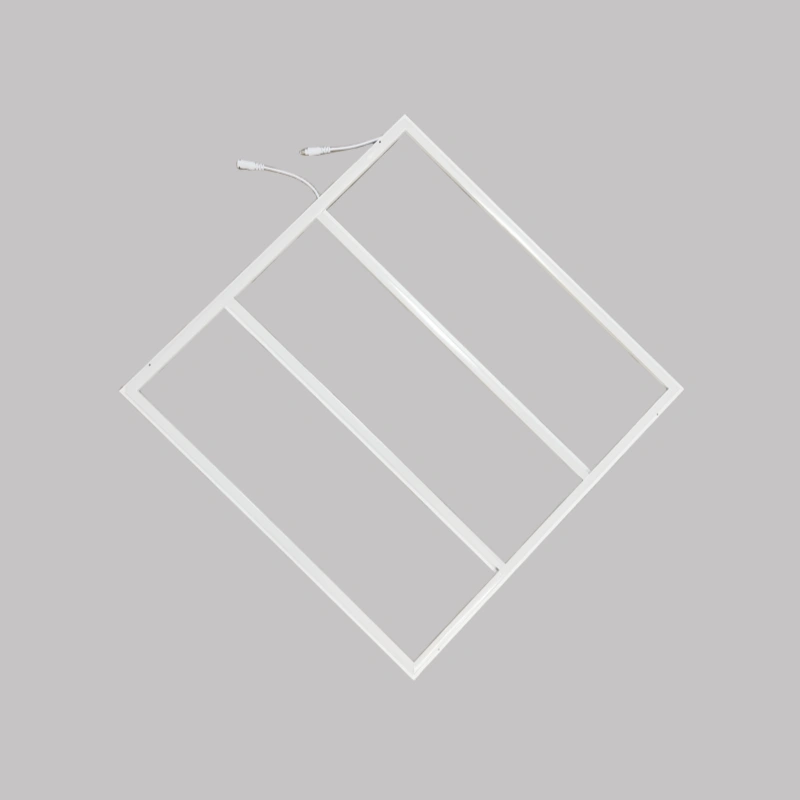

We have designated the LED frame panel with the name "Connectable."
The new two-frame designs are more visually appealing than the regular model. They not only improve the lighting experience for users but also increase the overall brightness.
This model has a standard power rating of 40W, but you can choose different wattages to fit your needs. Available options include 36W, 48W, 64W, and 72W. Lumens can reach 100 lm/W of each model.
Dimension | 591*591*11mm |
Item | LED frame panel |
Wattage | 40W |
LED Chip | Epistar 2835 3V 100mA |
LED QTY | 456pcs |
Driver | TUV CE (EMC/LVD) |
Diffuser Plate | PC |
PF | >0.9 |
Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 4000lm |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
UGR | 22 |
Beam Angle | 120° |
Warranty | 3years |
Life Time | 30000hrs |
Working Temperature | -20-45℃ |
MOQ | 200pcs |
Packing | 1 pc / brown inner box; 10 pcs / brown master carton |
Packing Size | Box: 62X3X62cm; Carton：63X33.5X63.5cm |
Accessories | 4pcs of foam corner protector; one page of instructions |
CE (EMC/LVD), RoHS, UL, GB, and SAA.
1. **LED Frame Panel Development**: We are one of the earliest manufacturers to develop and produce LED frame panels. Our engineers and assembly workers are well-versed in the product, allowing us to efficiently address any issues or customization requests that may arise. We ensure stable production, competitive pricing, high-quality workmanship, and fast delivery.
2. **Supply Chain Stability**: Since starting light production in 2003, we have developed a mature and reliable network of suppliers. From the diffusion plate to the drive components, we can quickly and effectively make the necessary adjustments for our customers to ensure timely deliveries.
3. **Independent Production**: Unlike many companies that outsource early production steps for LED frame panels, we maintain control over quality by completing 90% of the production processes in-house. Our facility is equipped with a diffusion plate cutting machine, glue machine, and patch machine, allowing us to better guarantee product quality for our customers. Please click this youtube link for reference: LED frame Panel www.tangtanglighting.com #ledframepanel #ledpanel #ledframelight #panellight
4. **Competitive Pricing**: Thanks to our advantages in production and supply chain management, our LED frame panels are competitively priced in the market, making it easier for our customers to explore new opportunities.
The demand for LED frame panel procurement is mainly concentrated in Europe, especially the United Kingdom. Because the product is relatively new, it is more likely to attract the attention of the end consumer. If you are a European wholesaler, you can consider this frame light, and it is a good product for expanding the market. The specific sample supply method can contact us directly or click here for more information.
Commercial, residential, or public facilities include offices, lobbies, hallways, classrooms, conference rooms, hotels, schools, libraries, showrooms, workshops, and healthcare facilities.
Supply capacity: 96000 pcs/month
Delivery time: 35 - 40 days
Place of origin: Zhejiang, China
Port of loading: Shanghai or Ningbo port
Services：
1. Your inquiry regarding our products or prices will be answered within 24 hours.
2. You can reliably track your orders with Tangtang Lighting at any time.
3. Your sales area, design ideas, and private information are protected.
4. Both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) are acceptable.
Materials: Aluminum and PC
