The 600x600 LED panel has become one of the most popular and efficient lighting solutions. Known for their modern design and exceptional energy efficiency, these panels offer superior lighting performance. The most notable advancement in this technology is the use of back-lit. It has surpassed the edge-lit LED panels in popularity.

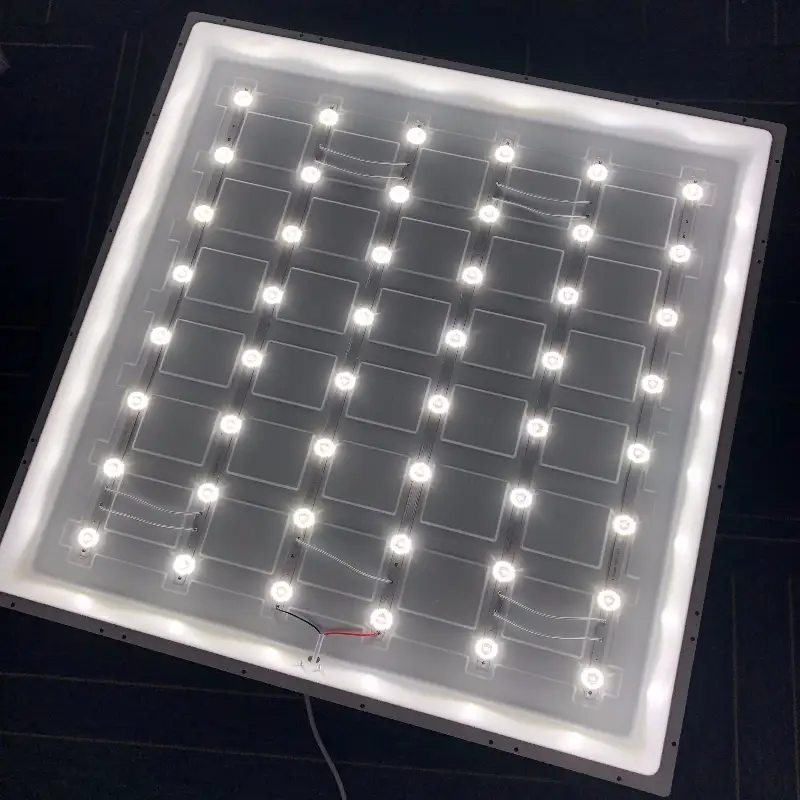

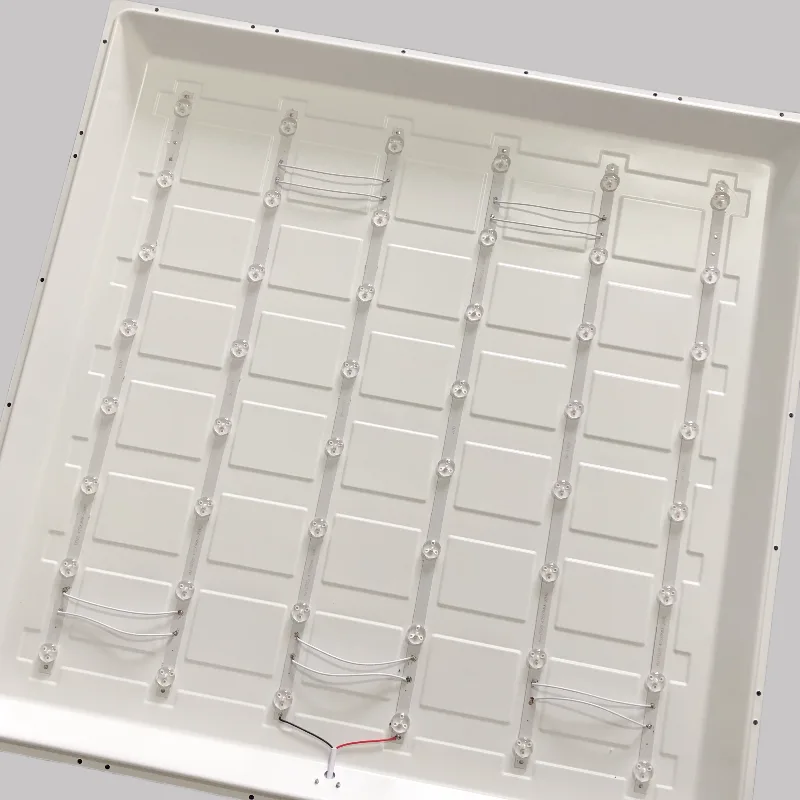

At the heart of a 600x600 LED panel is the innovative back-lit technology. Unlike traditional edge-lit LED panels, back-lit LED panels use an entirely different approach. In these panels, the LED chips are placed directly behind the panel, providing a more uniform distribution of light across the entire surface. This method cancels the LGP, which is an important component found in edge-lit designs.
The lack of an LGP reduces the complexity of the design and results in a more efficient panel. The back-lit 600x600 LED panels have a thickened, robust structure, ensuring durability and a longer lifespan.
1. High Energy Efficiency
One of the standout benefits of the 600x600 LED panel is its high energy efficiency. The direct emission of light from the LED chips, which are placed behind the diffusion plate, helps to significantly improve the energy efficiency of the entire lighting system. It ensures that the energy consumed is almost converted into light, making it an environmentally friendly and cost-effective solution.
2. Cost Reduction
The 600x600 LED panel design dispenses with the need for the LGP, which directly results in a reduction in manufacturing costs. Without the LGP, the production process becomes simpler, faster, and more affordable, making these panels more accessible to a broader range of customers. This cost reduction not only benefits consumers but also encourages the widespread adoption of 600x600 LED panels.
3. Spacious Interior Design and Greater Flexibility
The design of the 600x600 LED panel provides greater flexibility and enhances the aesthetic appeal of any space. We can incorporate various components within the panel to add more functions. For instance, we can enable an automatic dimming feature by installing induction equipment.
4. Lightweight Design and Improved Production Capacity
The 600x600 back-lit LED panel is lightweight, making transportation and installation easier. This enhances production capacity and enables assembly automation.

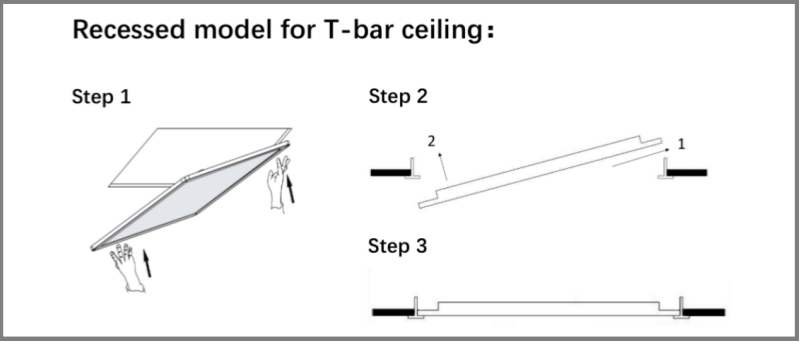

Assembling Video Links: Tangtanglighting - YouTube
Dimension | 595*595*30mm |
Model Type | Back-lit |
Wattage | 48W |
Diffuser Plate | PP 0.8mm |
Driver | Isolated |
PF | >0.5 |
Voltage | AC175-265V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 4800lm |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
Warranty | 2years |
MOQ | 200pcs |
Packing | 2pcs/brown inner box; 8pcs/brown master carton |
Accessories | 4 pieces of plastic corner protectors and one page of instructions |

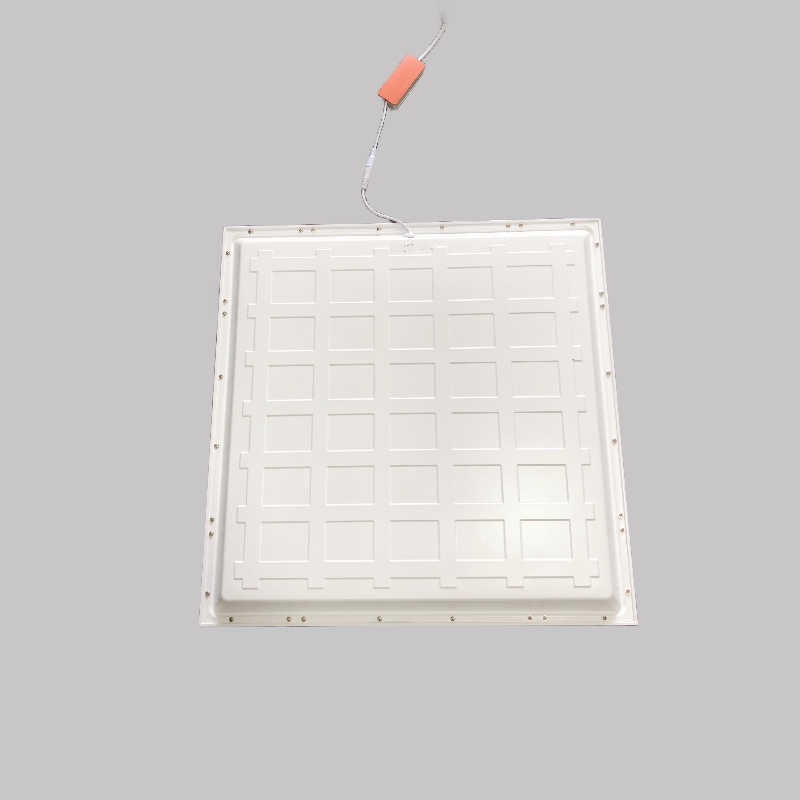

The CPB features a chip along with an enhanced thickened back cover for improved durability.

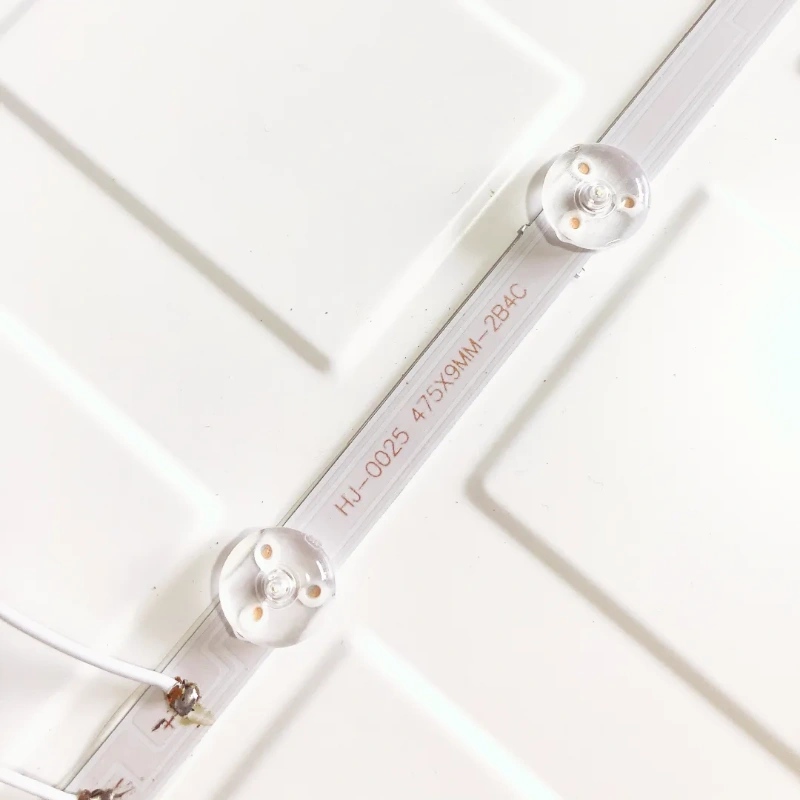

LED Chip Specifications: Model 2835 features a colour rendering index (CRI) of 80 and is designed for high brightness output.

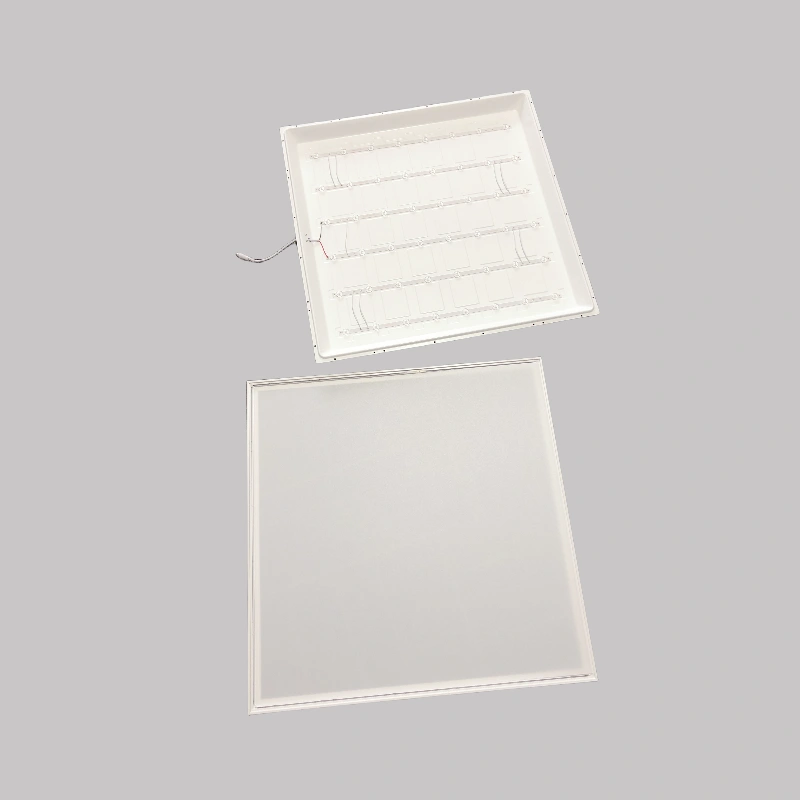

600X600 LED panel: Split photo
Packing photo for reference:
Supply capacity: 120000 pcs/month
Delivery time: 30-35 days
Place of origin: Zhejiang, China
Port of loading: Shanghai or Ningbo port
Material: Aluminum & Powdered Iron
