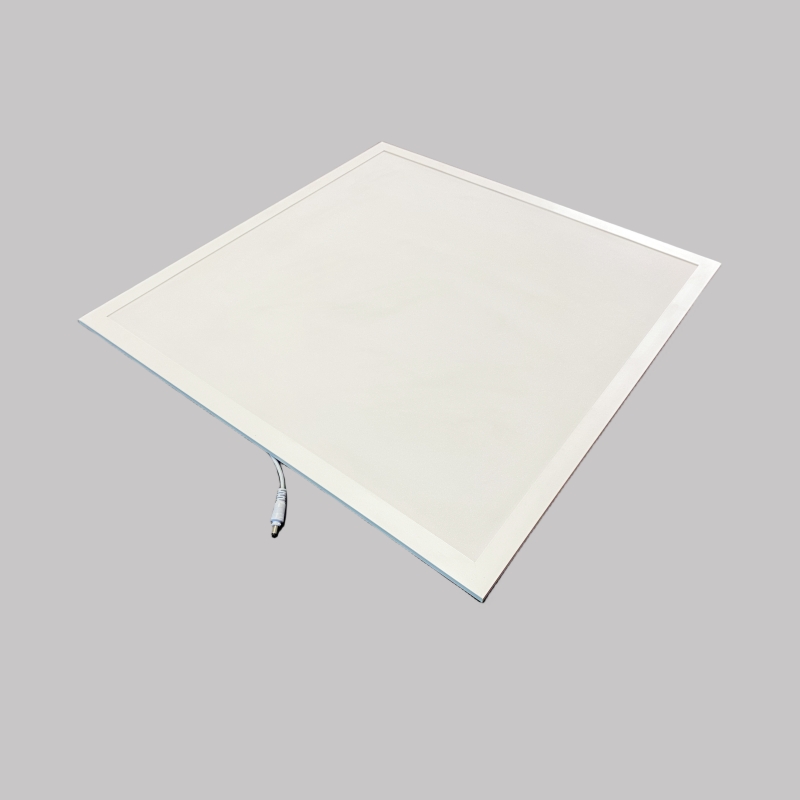

High Efficiency 60X60 LED panel Back-lit 4800lm CE

  • highlight iconBody Materials: Aluminum& Iron
  • highlight icon Size: 595*595*30mm
  • highlight icon Watt: 40W
  • highlight icon CCT: 3000K/4000K/6500K
  • highlight icon Driver: CE
  • highlight icon Power Factor: >0.9
  • highlight icon Flicker: without
  • highlight icon Lumen: 110-120lm/W
  • highlight icon Warranty: 3years

Introduction:

The 60X60 LED panel is widely recognized for its numerous pros:

1. High energy efficiency. The light emitted by the LED chips is directly irradiated through the diffusion plate, improving the luminaire system's energy efficiency.

2. The cost is lower. The LGP is eliminated, and the panel's cost is reduced.

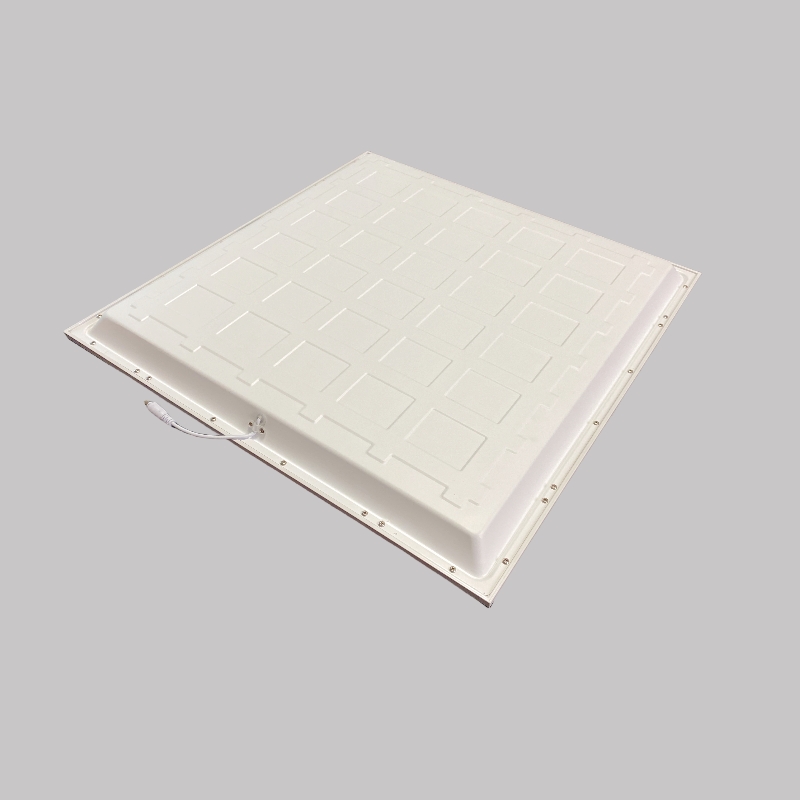

3. The back-lit model's internal space is large, and the design is more flexible.

4. The weight of the back-lit LED panel is lighter, and fewer materials can improve the production capacity.

This 60X60 LED panel is a typical example, providing up to 120lm/W from the dark room testing. The back cover is made of solid iron with powder sprayed to prevent rusting. The power supply is a high-quality, brand-driven Lifud, which can ensure stable output and a long lifetime warranty.


Specifications:

Dimension

595*595*30mm

Model Type

Back-lit

Wattage

40W

Diffuser Plate

PS 1.0mm

Driver

CE (EMC/LVD)

PF

>0.9

Voltage

AC220-240V 50/60Hz

CRI

>80Ra

Lumen Flux

4400-4800lm

CCT

3000K/4000K/6500K

IP Rate

IP20

Warranty

3years

MOQ

200pcs

Packing

without brown inner box; 10pcs/brown master carton

Accessories

4pcs of big foam corner protector; one page of instructions


Photographs:

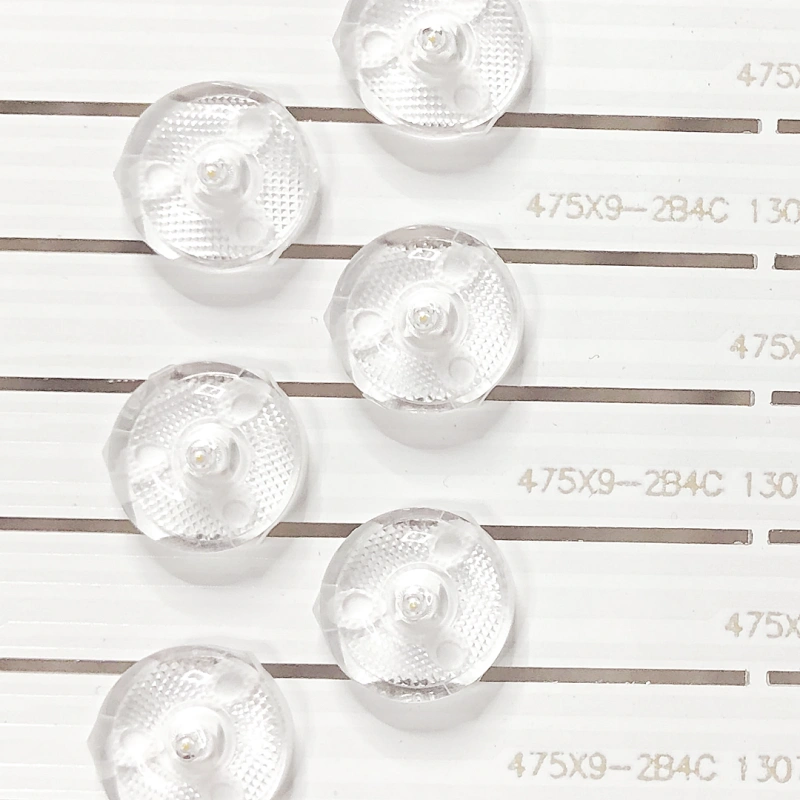

LED chip: SMD2835, SDCM<5.

High Efficiency 60X60 LED panel Back-lit 4800lm CE

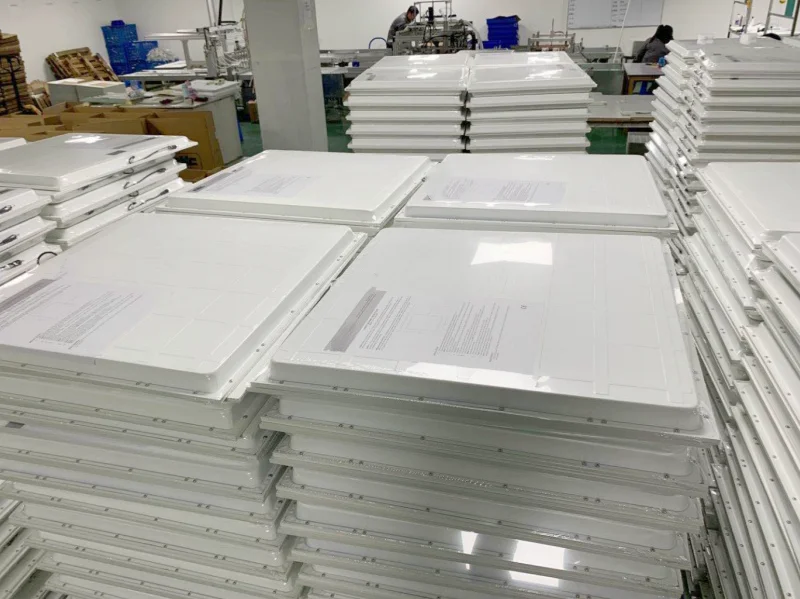

The order photo of the 60x60 LED panel.

High Efficiency 60X60 LED panel Back-lit 4800lm CE

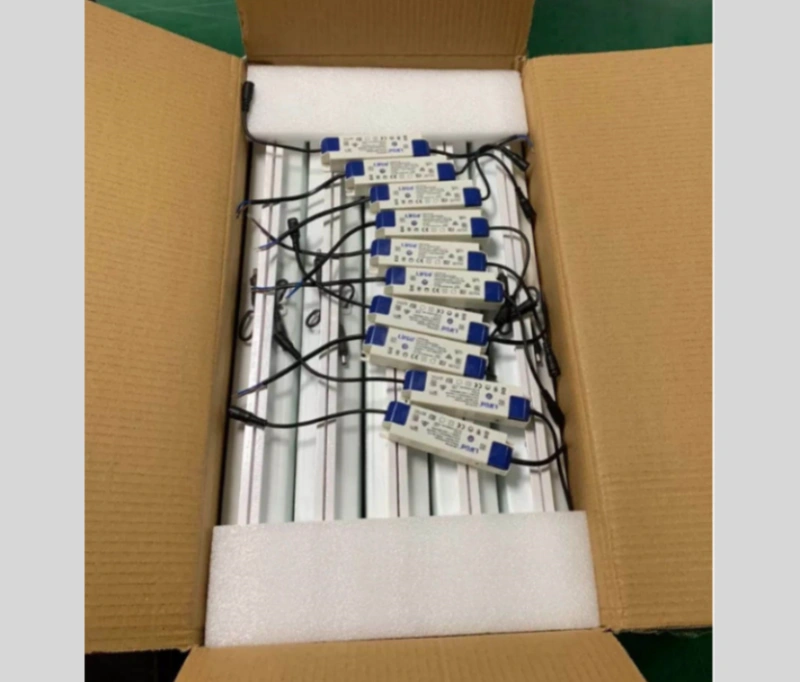

Packing for reference: 10 pieces are packed in one brown master carton without the inner box. Additionally, 4 large foam corner protectors are included in the carton.

High Efficiency 60X60 LED panel Back-lit 4800lm CE

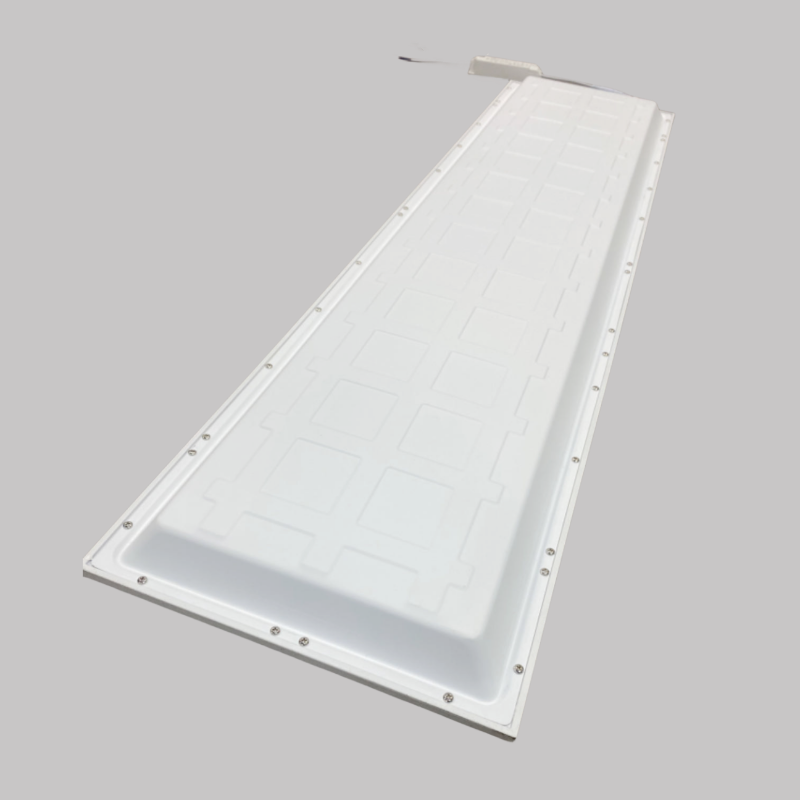

The LED panel 120X30: Same specifications but different dimensions.

High Efficiency 60X60 LED panel Back-lit 4800lm CE


Installation Instructions:

High Efficiency 60X60 LED panel Back-lit 4800lm CE

Other Information:

Supply capacity: 120000 pcs/month

Delivery time: 30-35 days

Place of origin: Zhejiang, China

Port of loading: Shanghai or Ningbo port

Services:

1. Your inquiry regarding our products or prices will be answered within 24 hours.

2. Your order is always traceable in Tangtang Lighting.

3. Your sales area, design ideas, and private information are protected.

4. OEM and ODM are acceptable.
