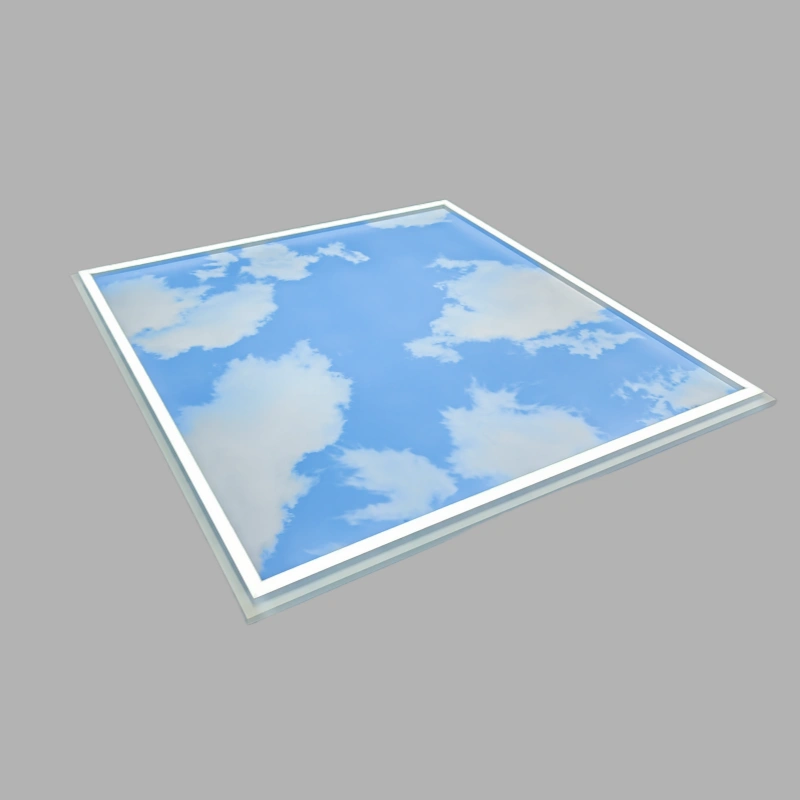

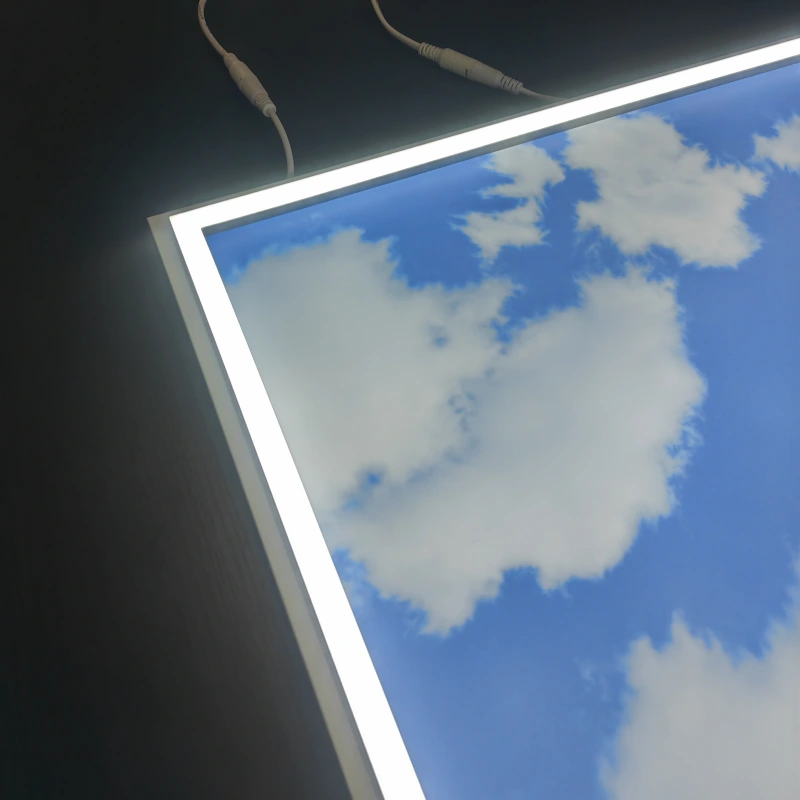

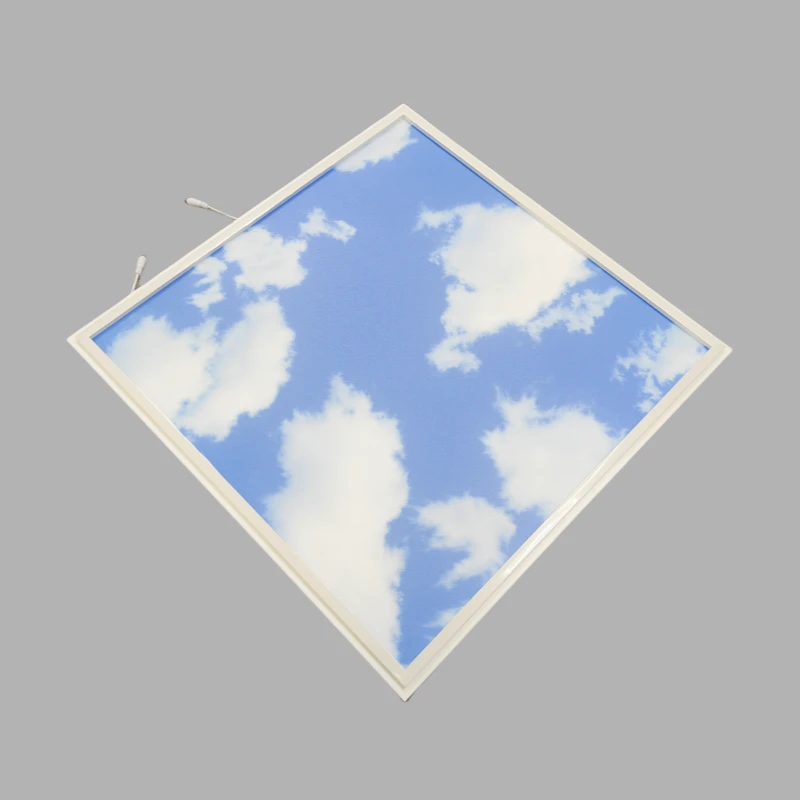

Our latest LED panel is a cutting-edge model designed to enhance both aesthetics and functionality. After extensive prototyping and meticulous color adjustments, the blue sky LED panel offers a delicate, soft visual experience. Featuring an LED frame panel surrounding the outer circle, this panel creates a serene and warm ambiance when illuminated. Since its launch, it has quickly gained popularity among European customers for its modern appeal and superior performance.
Dimension | 595*595*37mm (Inner size: 575*575mm) |
Item | LED frame panel |
Wattage | 40W |
LED Chip: | Epistar 2835 |
Driver | CE (EMC/LVD) |
Diffuser Plate | PC+PS |
PF | >0.9 |
Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 2800lm |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
Beam Angle | 120° |
Warranty | 3years |
Life Time | 30000hrs |
Working Temperature | -20-45℃ |
MOQ | 200pcs |
Packing | 1 pc / brown inner box; 10 pcs / brown master carton |
Accessories | 4pcs of foam corner protector; one page of instructions |
Sturdy Aluminum Frame: Crafted from a high-grade heavy aluminum frame using one-body molding technology, ensuring high durability, stability, and fast heat dissipation.
High-Definition Diffusion Plate: Engineered with ultra-fine particles and HD printing, delivering vibrant blue sky patterns with outstanding clarity. Customization options are available for patterns and colors.
Advanced LED Chips: Utilizes 2835 high-quality LED chips with PMMA lenses, ensuring high efficiency, uniform illumination, and an extended lifespan.

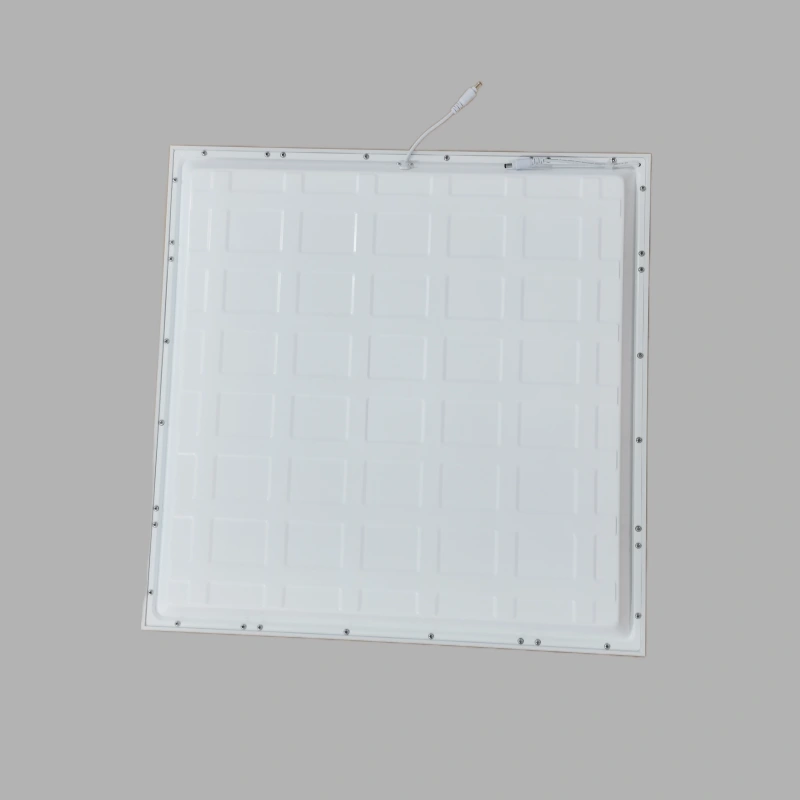

Reinforced Back Cover: Designed with a thickened iron powder back cover, offering superior heat resistance and durability compared to traditional film covers.
Aesthetic Superiority: Unlike conventional LED panels, our design is more visually appealing and decorative.
Customizable Patterns: Tailor-made designs cater to diverse consumer preferences.
Cost-Effective Backlit Solution: The integration of a 40W backlit LED panel significantly reduces production costs.
Innovative Market Potential: The combination of backlit technology with an LED frame panel introduces a novel design, unlocking new market opportunities.
Our LED panel is suitable for various environments, including:
✔ Commercial Spaces – Offices, hotels, retail stores, and shopping malls.
✔ Residential Use – Living rooms, bedrooms, and home decor applications.
By combining style, efficiency, and innovation, our LED panel redefines modern lighting solutions.
Materials: Aluminum, PS, PC and Iron
