Introduction:

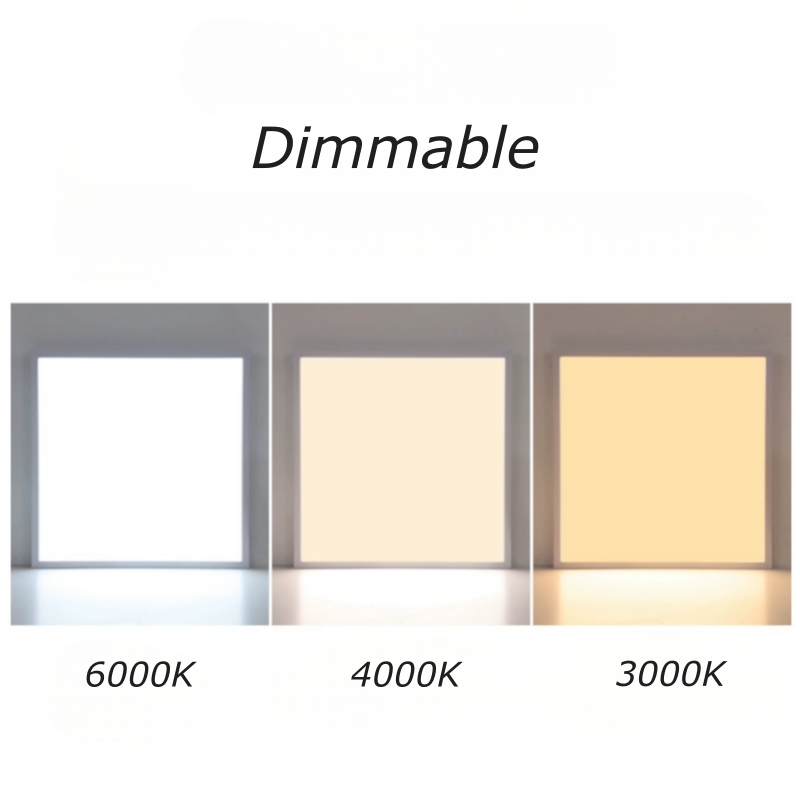

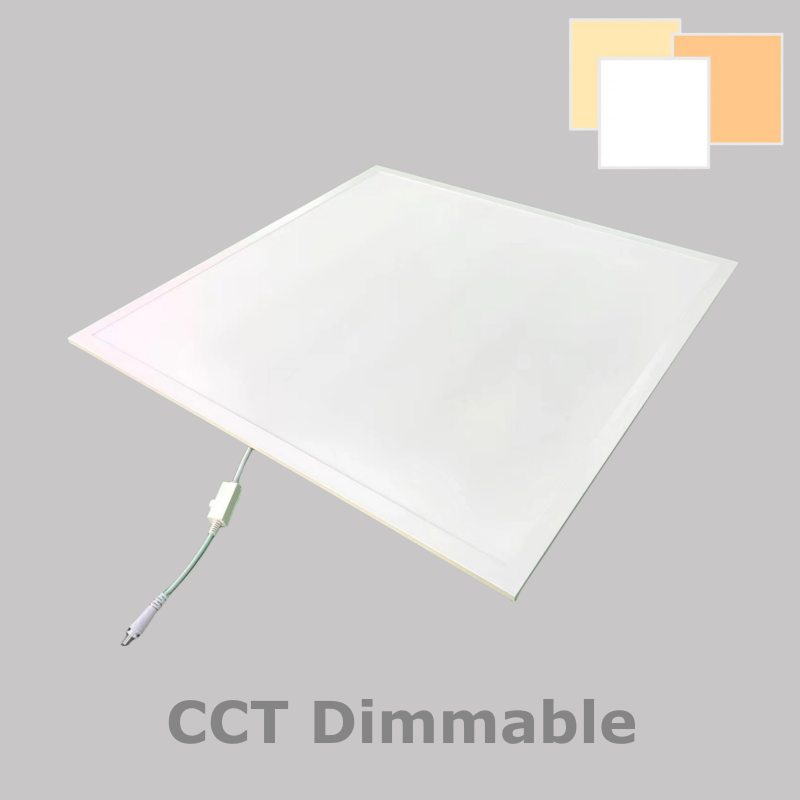

This dimmable LED panel allows you to adjust its colour temperature through a dip switch. You can choose from three different colour temperatures: 3000K, 4000K, and 6000K. How is the panel made to achieve colour temperature adjustment? It uses two colour-temperature LED chips, 3000K and 6000K. In addition to their colour temperature, the neutral colour of 4000K results from combining two colour temperatures. Please find the video link: Switch CCT Dimmable Led Panel: www.tangtanglighting.com (youtube.com). The test report files are available. Don't hesitate to get in touch with us for more information.
Specifications:

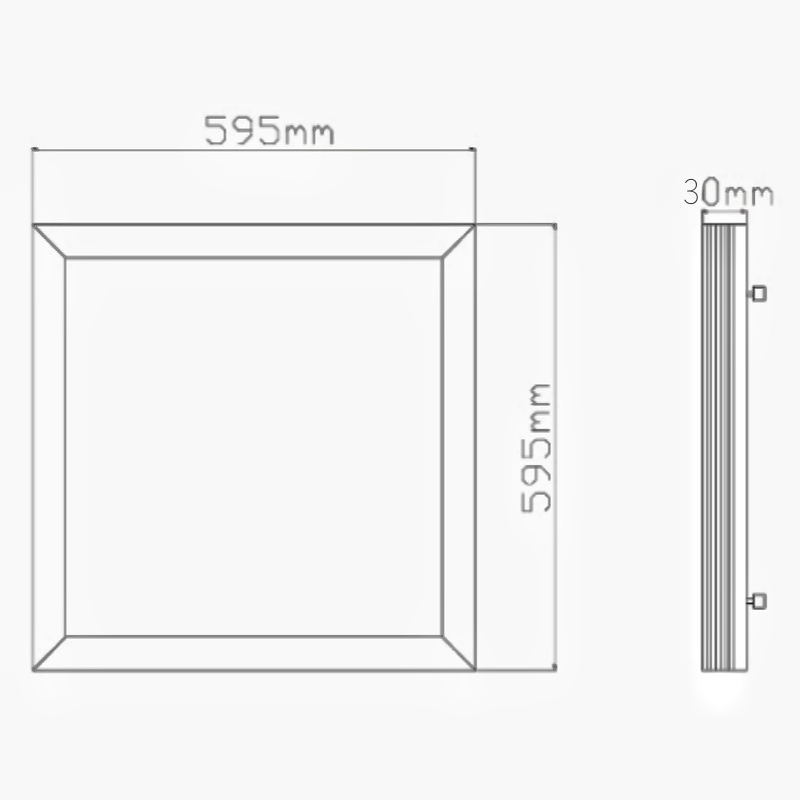

Dimension | 595*595*30mm |
Model Type | Dimmable LED panel |
Wattage | 40W |
Driver | CE (EMC/LVD) |
Diffuser Plate | PS 1.0mm |
PF | >0.9 |
Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 4400-4800lm |
CCT Dimmable | 3000K/4000K/6000K |
IP Rate | IP20 |
Warranty | 3years |
Working Temperature | -20-45℃ |
MOQ | 200pcs |
Packing | 2pcs/brown inner box; 8pcs/brown master carton |
Accessories | 4pcs of PP corner protector each unit; one page of instructions |

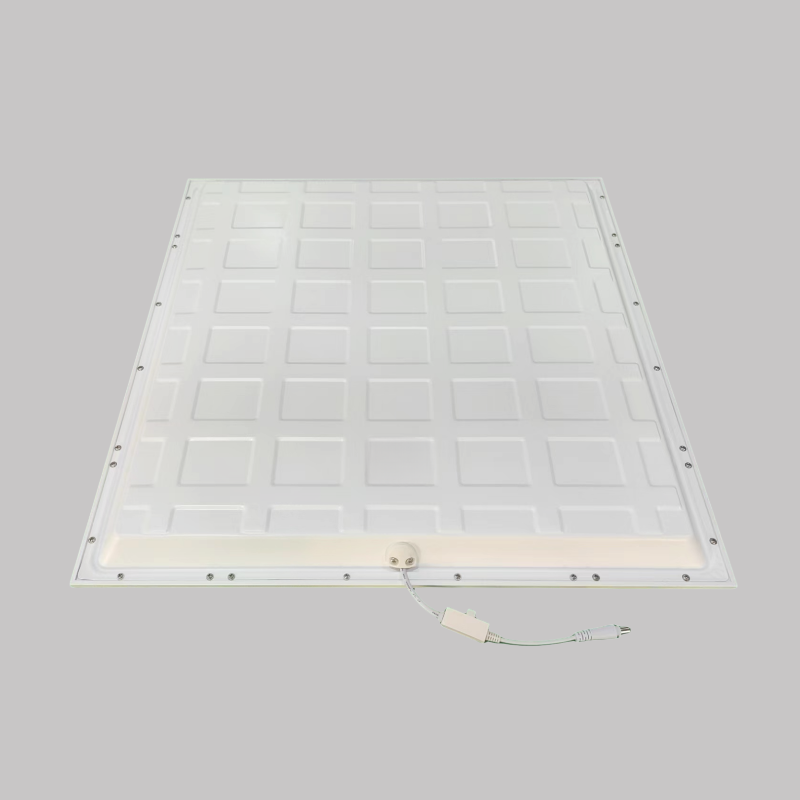

Photographs: Thickened back cover

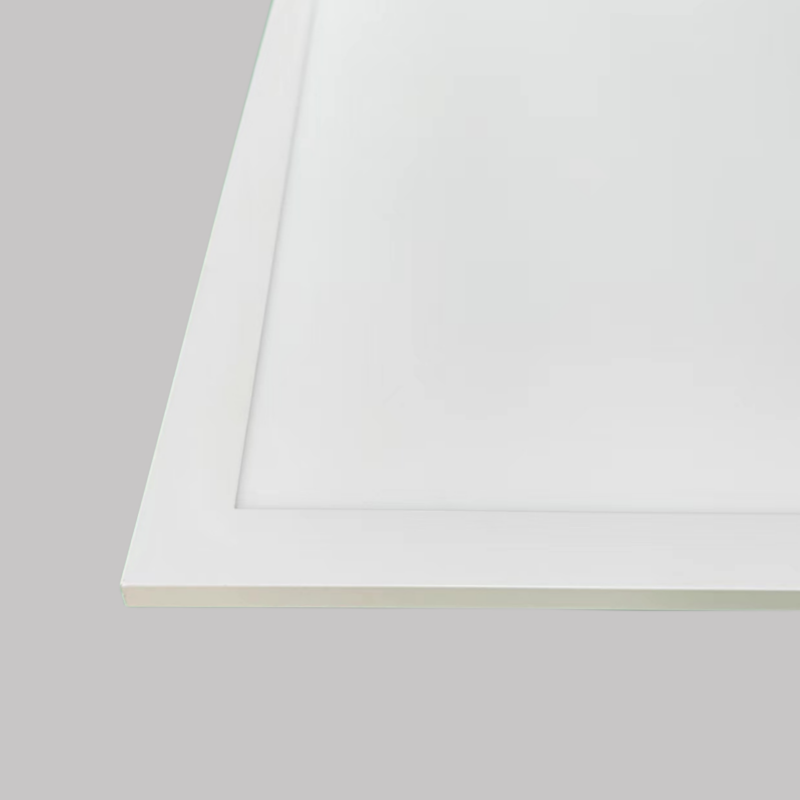

Thickened white & flat frame：

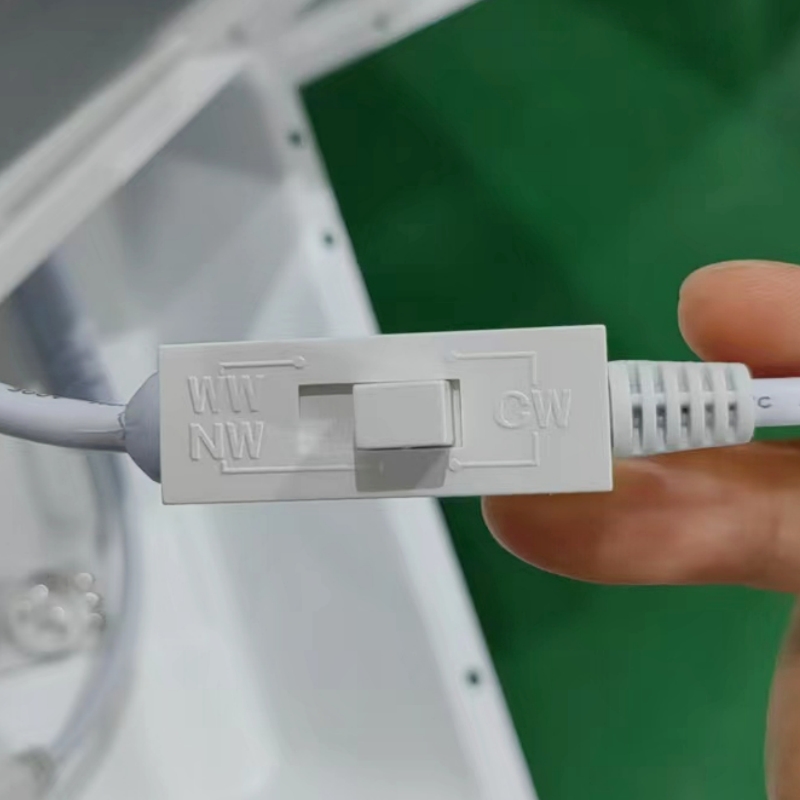

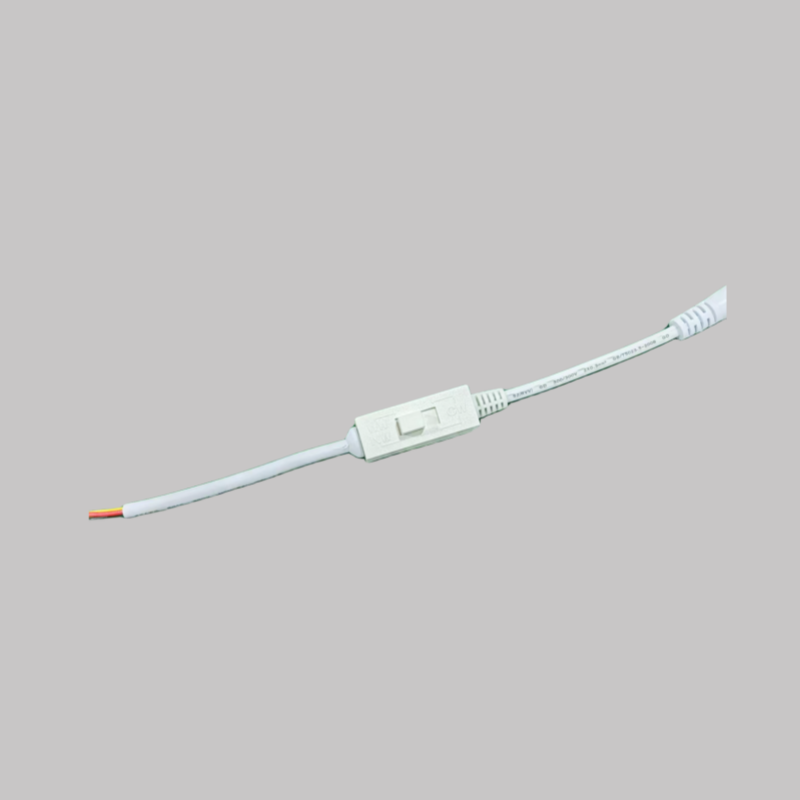

High-quality CCT Swith：
You can adjust the colour temperature to cater to different atmospheres.

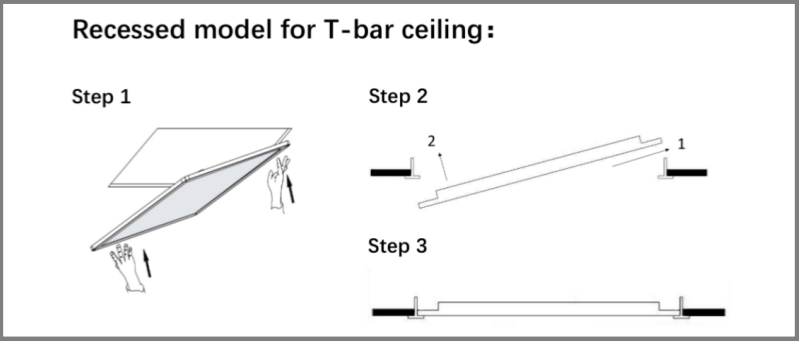

The dimmable LED Panel Installation Instructions:
Other Information:
Supply capacity: 120000 pcs/month
Delivery time: 30-35 days
Place of origin: Zhejiang, China
Port of loading: Shanghai or Ningbo port
Services：
1. Your inquiry regarding our products or prices will be answered within 24 hours.
2. Your order is always traceable in Tangtang Lighting.
3. Your sales area, design ideas, and private information are protected.
4. OEM and ODM are acceptable.
Material: Aluminum & Powdered Iron
