Introduction:
The LED frame panel is a new extended version of the LED panels. The internal and external lattice designs have been improved to make the original product richer and more versatile. The brightness of the LED frame panel is high, and the total lumen output can reach up to 100lm/W, but it still emits a soft glow that is easy on the eyes. There are three wattage options: 40W, 60W and 80W. It can be used in various settings.
Specifications:

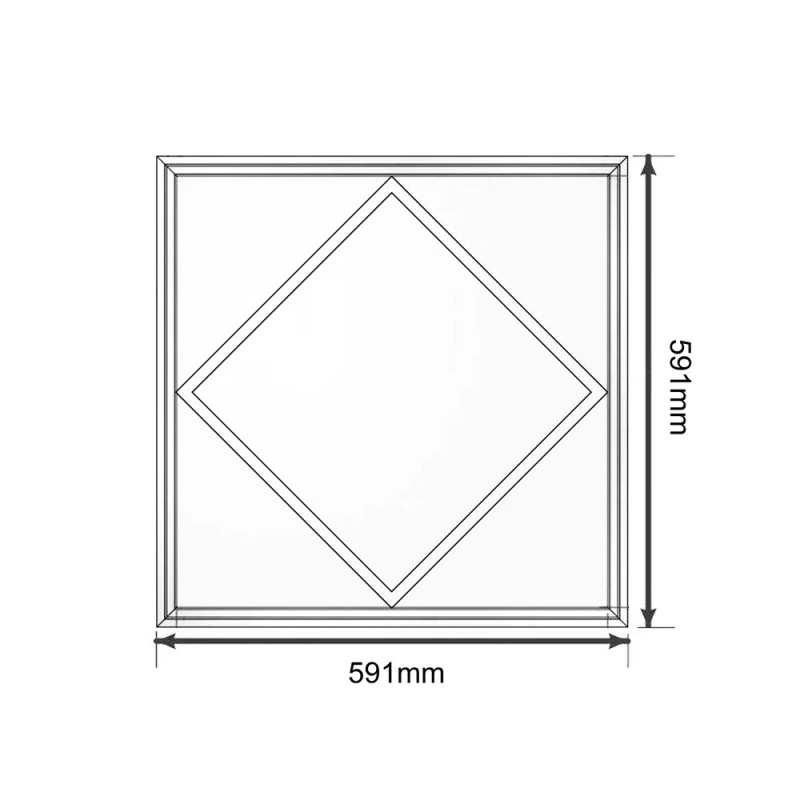

Dimension | 591*591*11mm |
Wattage | 40W/60W/80W |
Chip | 2835 |
Driver | CE (EMC/LVD) |
PF | >0.9 |
Input Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 4000lm/6000lm/8000lm |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
Warranty | 3years |
Working Temperature | -20-45℃ |
MOQ | 200pcs |
Packing | 1pc/brown inner box; 10pcs/brown master carton |
Accessories | 4pcs of PP corner protector; one page of instructions |

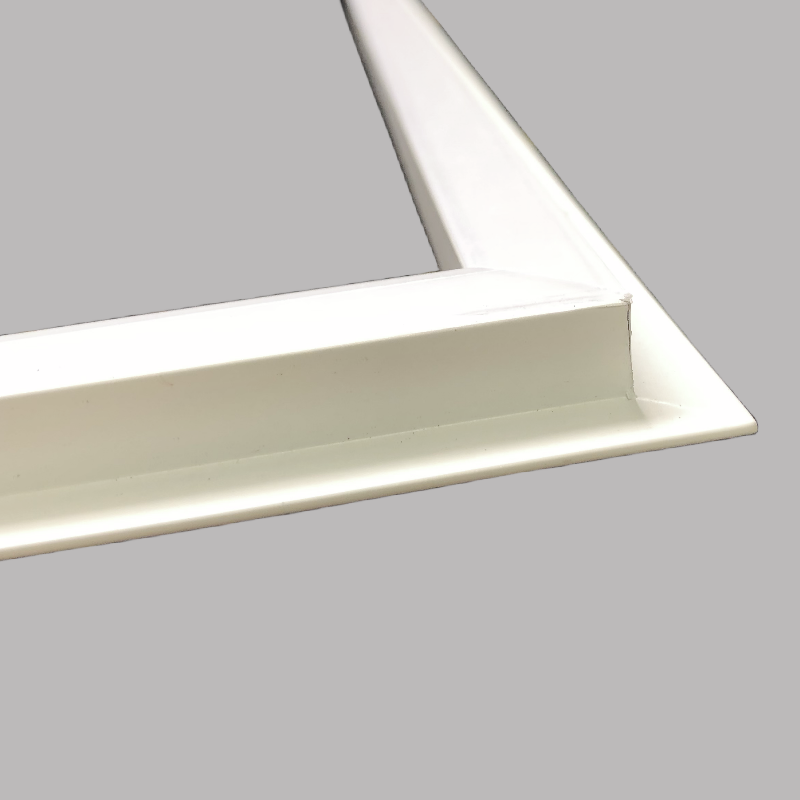

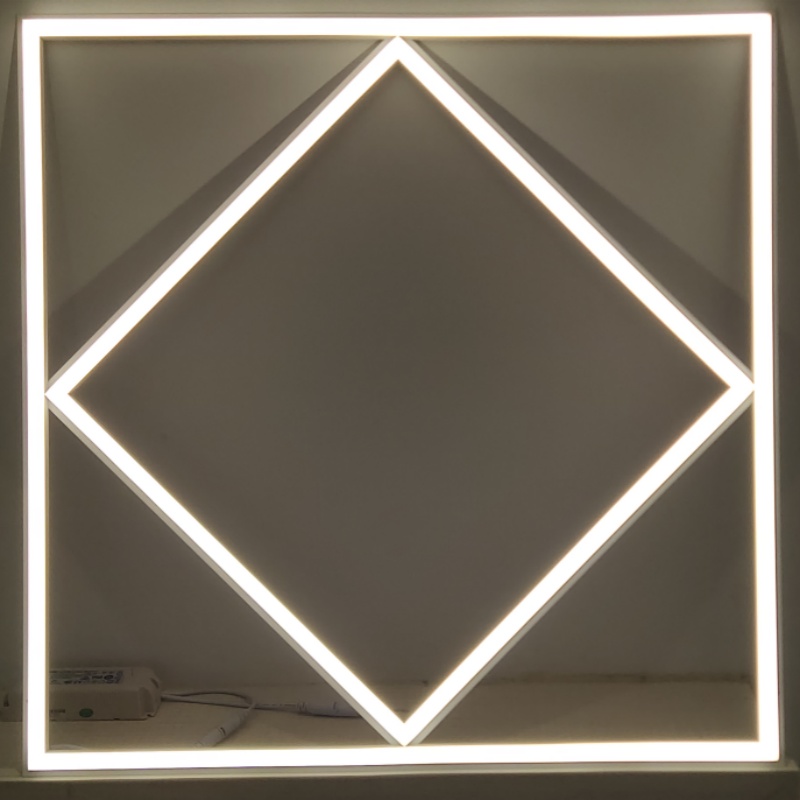

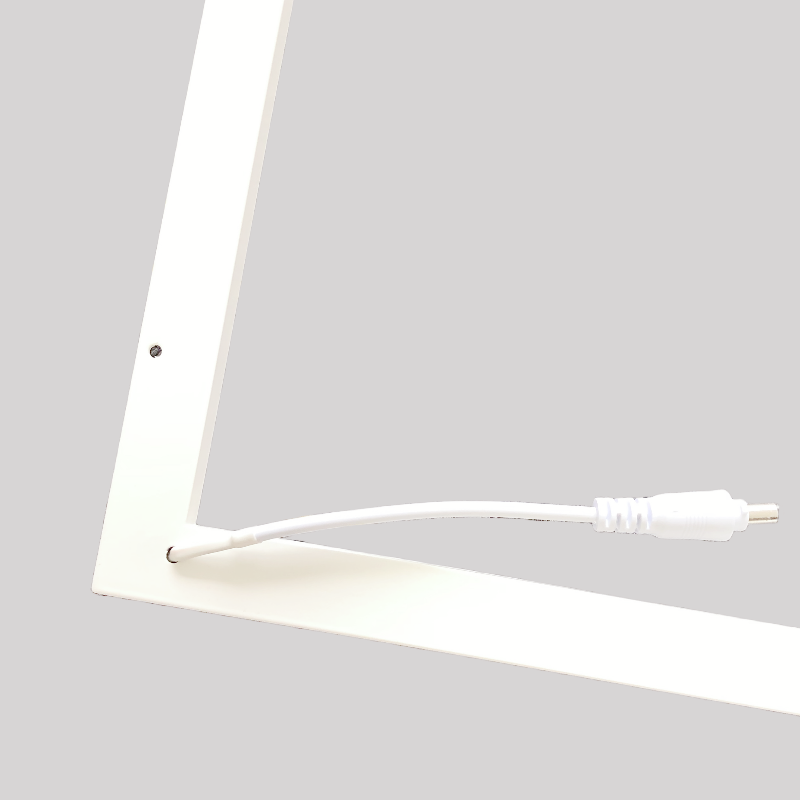

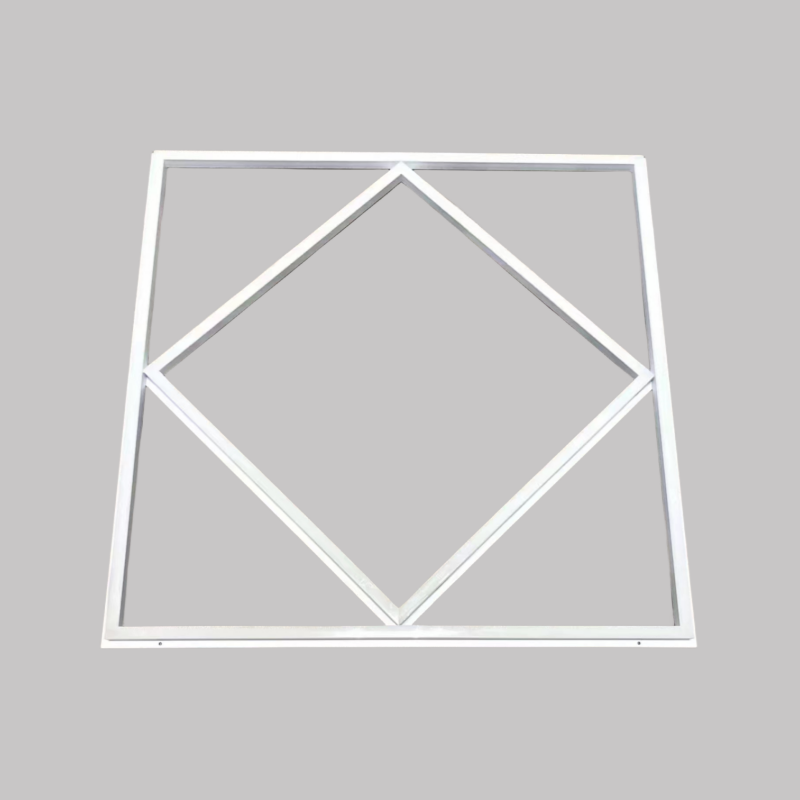

Photographs of LED frame panel:
Body Materials: Aluminum and PP
