Introduction:
The LED panel 120X30 is a standard edge-lit model, typically available in Germany, with the fitting size for most European countries being 1195X295mm. The materials used in this panel are of excellent quality. It features a uniform white spray aluminium frame and a thickened spray iron back cover, making it durable and resistant to damage during delivery. The simple yet elegant stepped frame design gives it a sense of light luxury style. The interior of the LED panel 120x30 contains an MS LGP, which is superior to the PS LGP as it is less prone to yellowing. This improves the service life and aesthetic appeal of the LED panels.
Specifications:
Dimension | 1200*300*9mm |
Model Type | Edge-lit |
Wattage | 40W |
LGP | MS 2.0mm |
Driver | TUV CE (EMC/LVD) |
PF | >0.9 |
Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 4000-4400lm (Dark Room Testing Report) |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
Warranty | 3years |
MOQ | 200pcs |
Packing | 1pc/brown inner box; 6pcs/brown master carton |
Accessories | 4 pieces of foam corner protectors and one page of instructions |

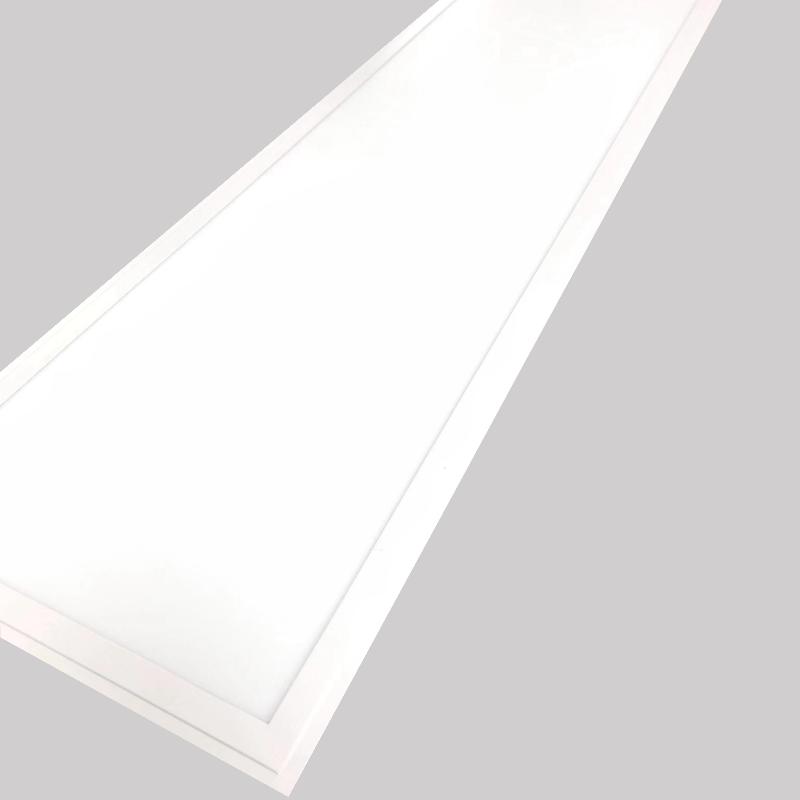

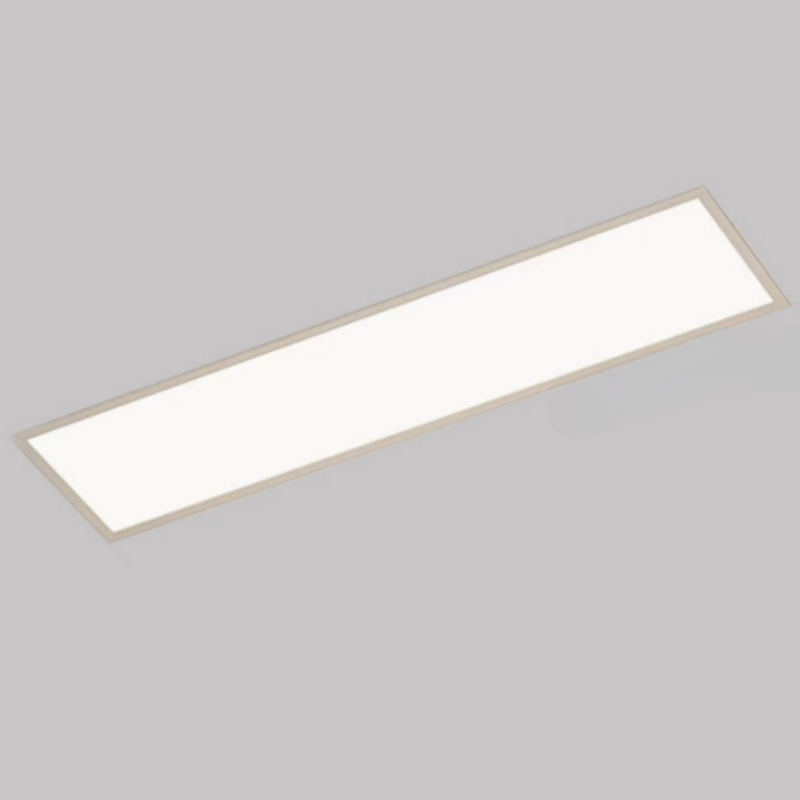

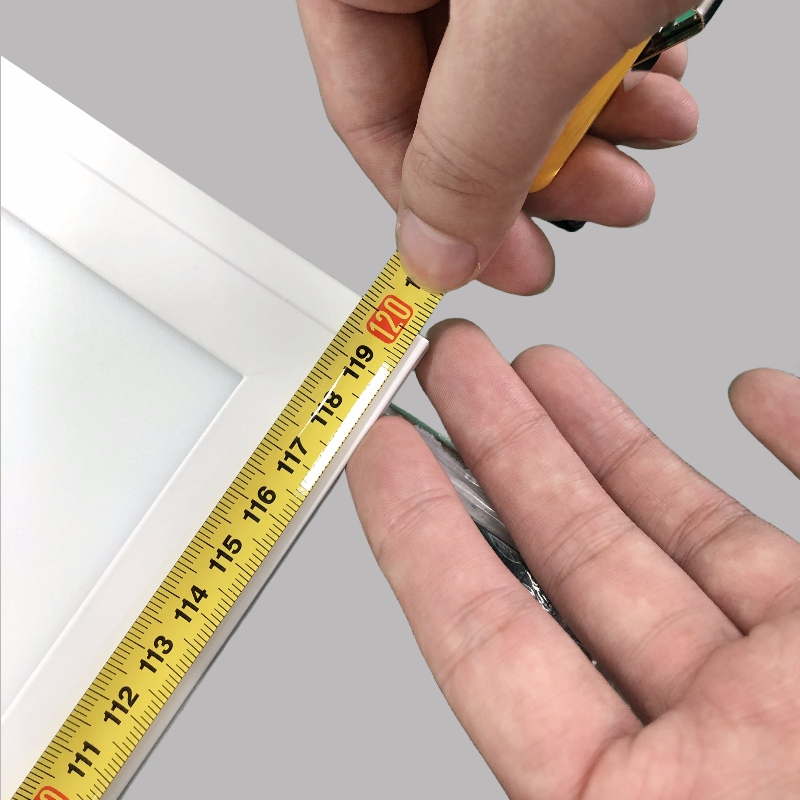

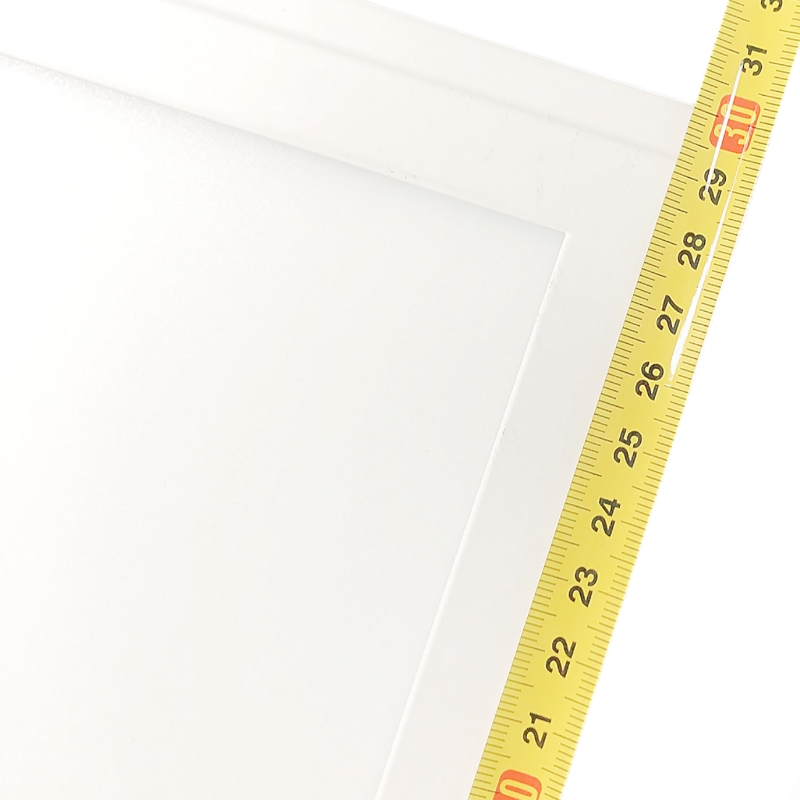

Photographs:

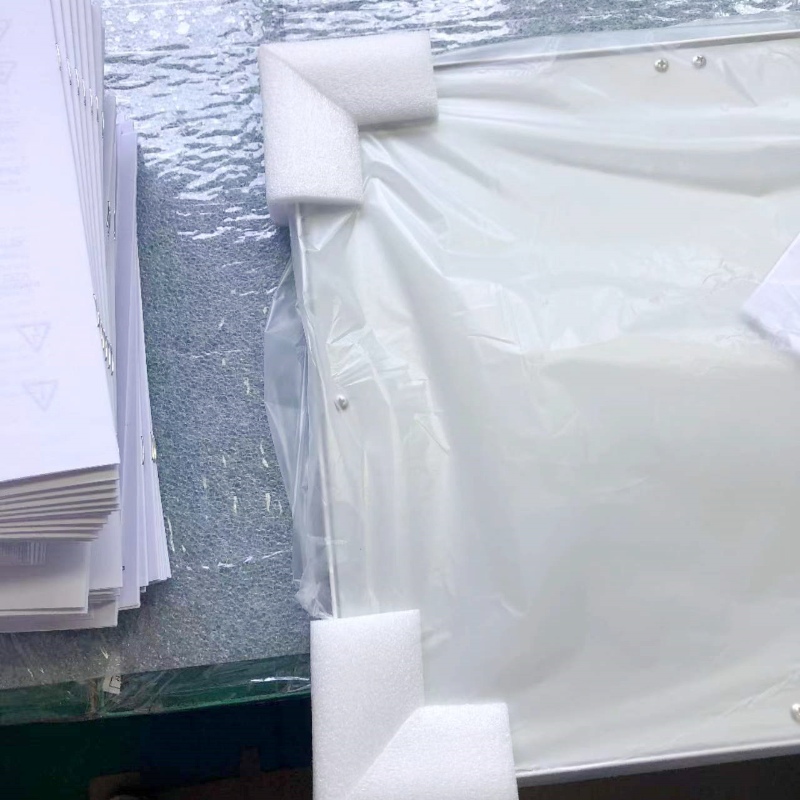

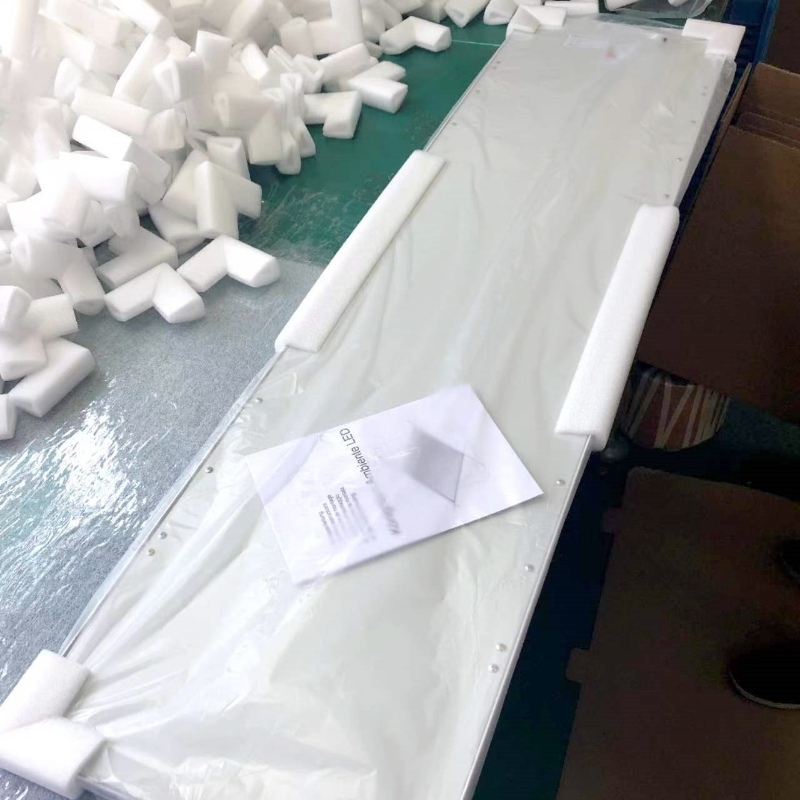

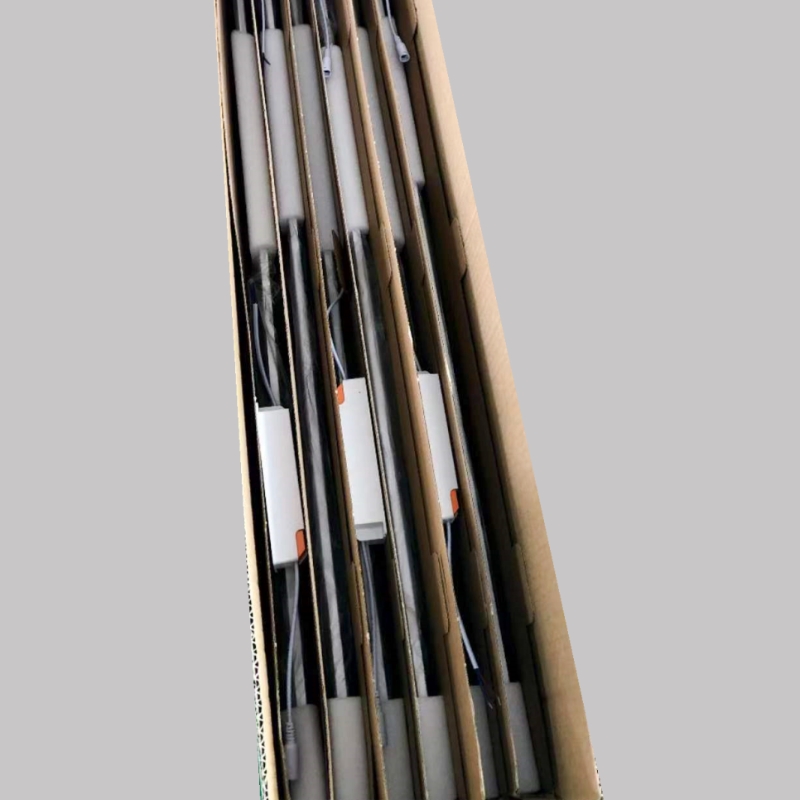

LED Panel 120X30 Packing:

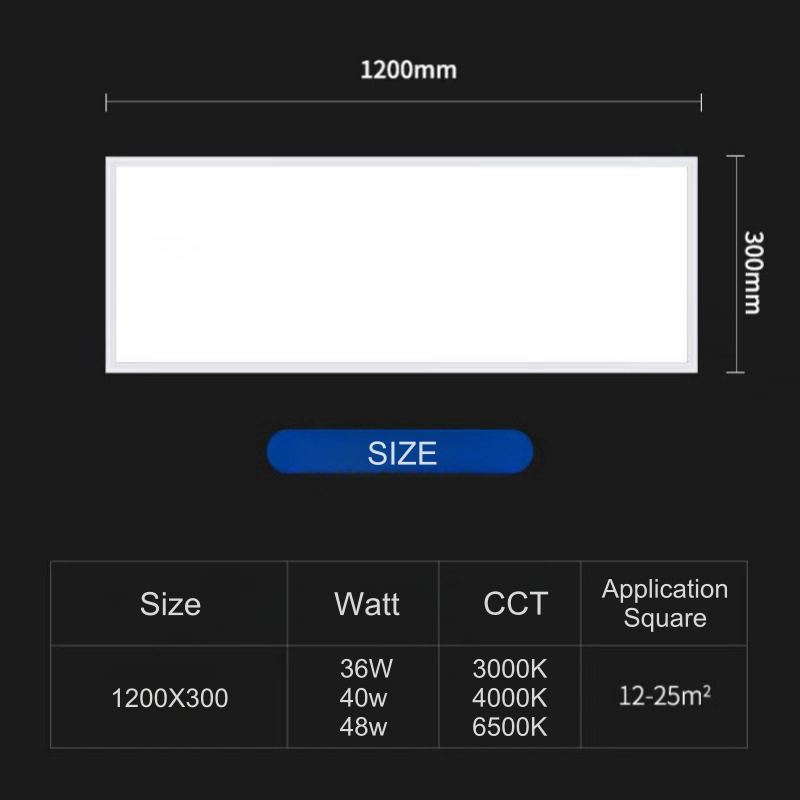

Wattage Options of LED Panel 120X30:

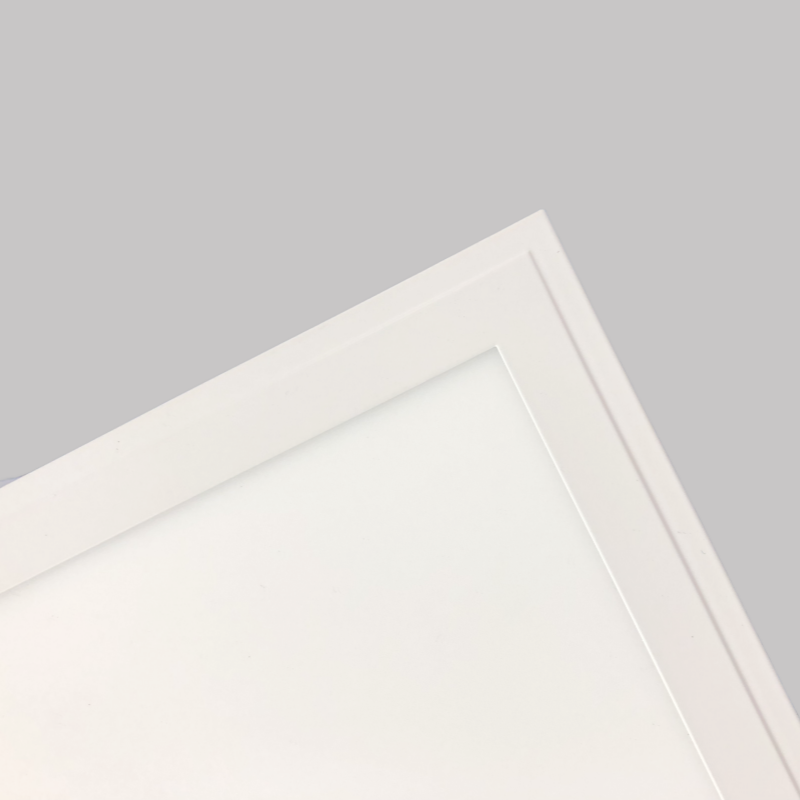

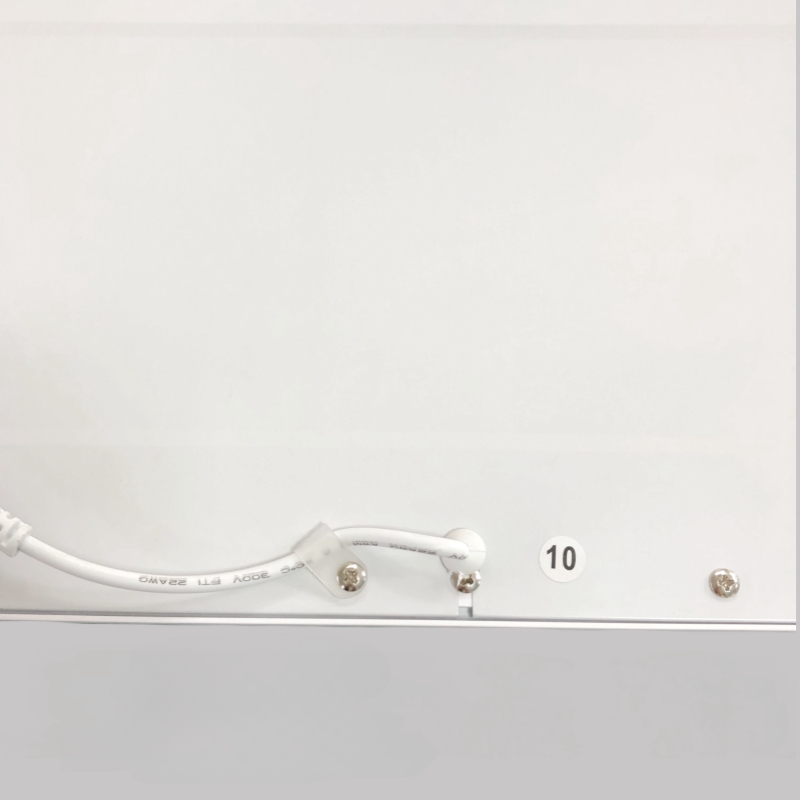

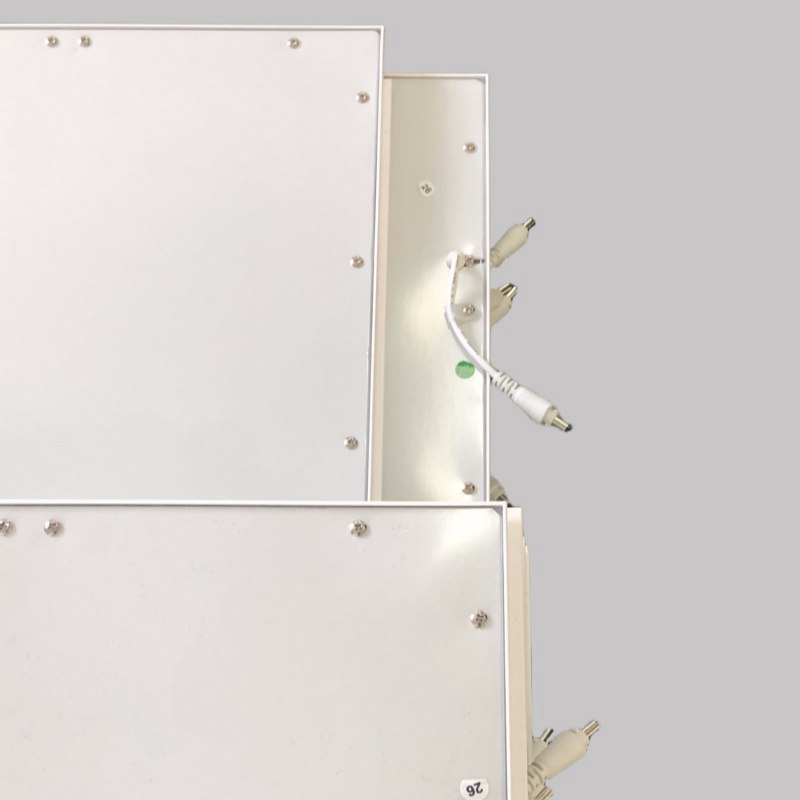

Body Materials: Aluminum& Powdered Iron
