2X4 LED Flat Panel 72W AC85-265V Thickened Materials

  • highlight iconMaterial: Aluminum & Powdered Iron

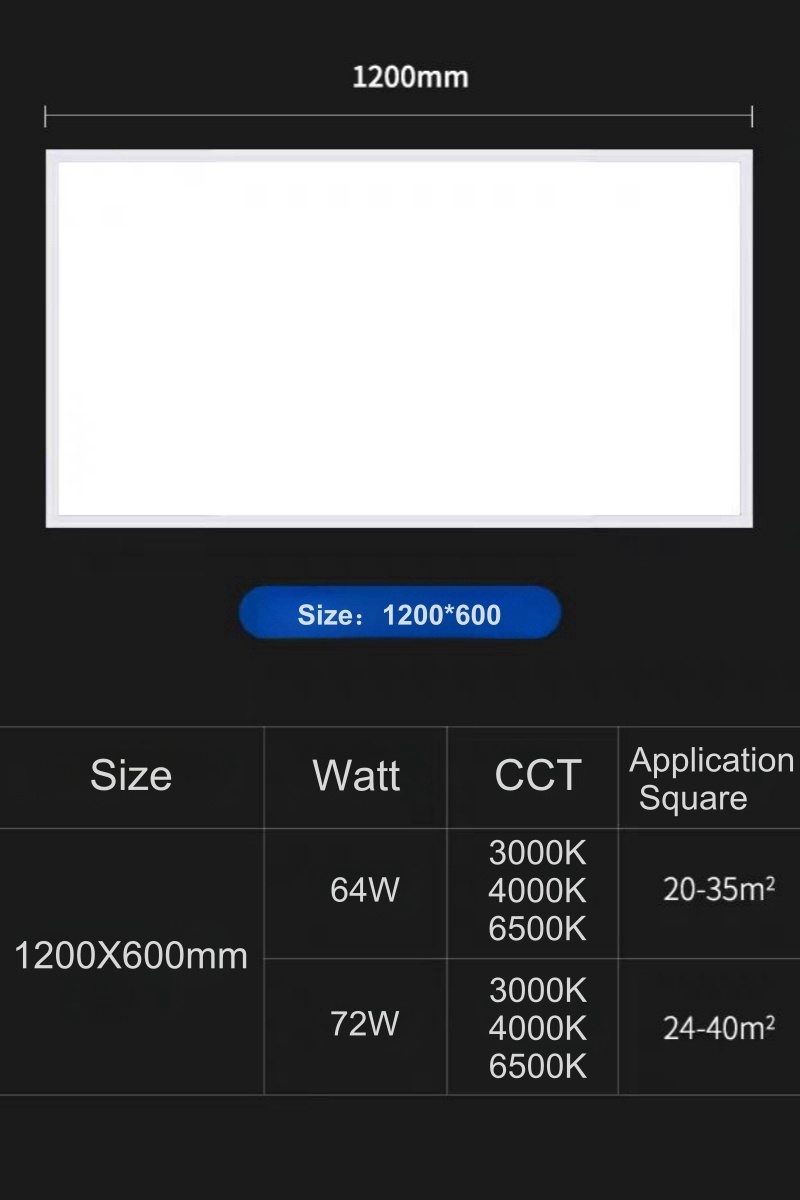

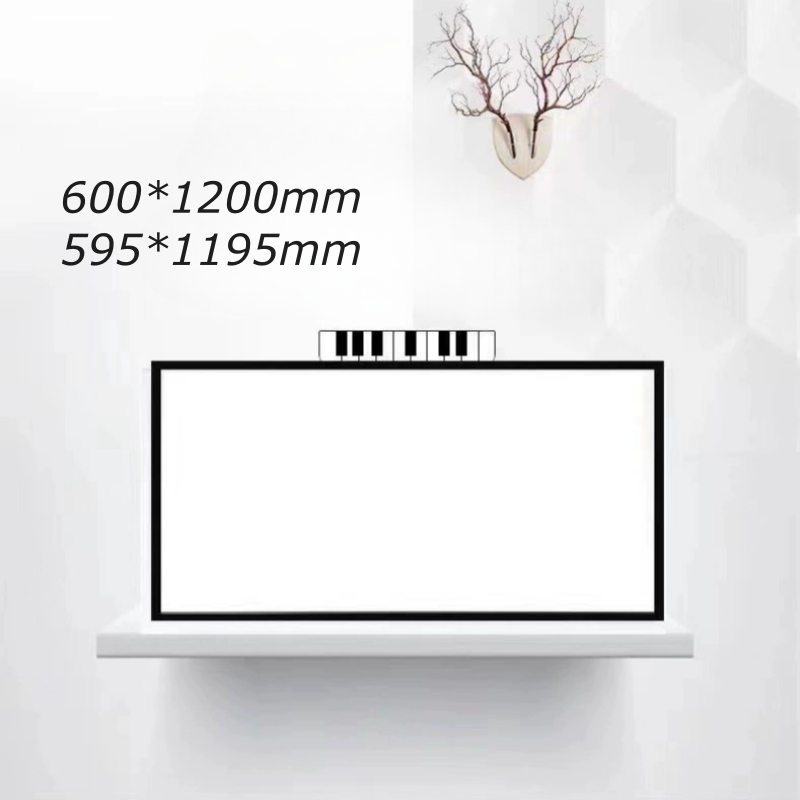

  • highlight icon Size: 1195x595x10mm
  • highlight icon Watt: 72W
  • highlight icon CCT: 3000K/4000K/6500K
  • highlight icon Driver: Isolated
  • highlight icon Power Factor: >0.5
  • highlight icon Flicker: None
  • highlight icon Lumen: 80-90lm/W
  • highlight icon Warranty: 2 years

Introduction:

The 2X4 LED flat panel is the largest standard-sized panel, meaning its material requirements are higher than ordinary specifications to avoid potential quality issues. This panel is made of extra-thick, high-quality materials and assembled meticulously to ensure superior product quality. Each 2X4 LED flat panel undergoes careful inspection and standardized ageing procedures before loading to guarantee quality. Additionally, the full-voltage drive is superior quality, cost-effective, and waterproof. There are two colours available: white and black. Both OEM and ODM are acceptable.


Specifications:

Item

2X4 LED flat panel

Type

Edge-lit

Wattage

64W/72W

LGP

MS 2.3mm

Driver

Isolated IP65

Diffuser Plate

PS 1.2mm

PF

>0.5

Voltage

AC85-265V 50/60Hz

CRI

>80Ra

Lumen Flux

5760-6480lm

CCT

3000K/4000K/6500K

IP Rate

IP20

Warranty

3years

       Working Temperature

-20-45℃

MOQ

200pcs

Packing

1pc/brown inner box; 3pcs/brown master carton

Accessories

4pcs of foam corner protector; one page of instructions


Information on the 2X4 LED flat panel for reference.

2x4 led flat panel

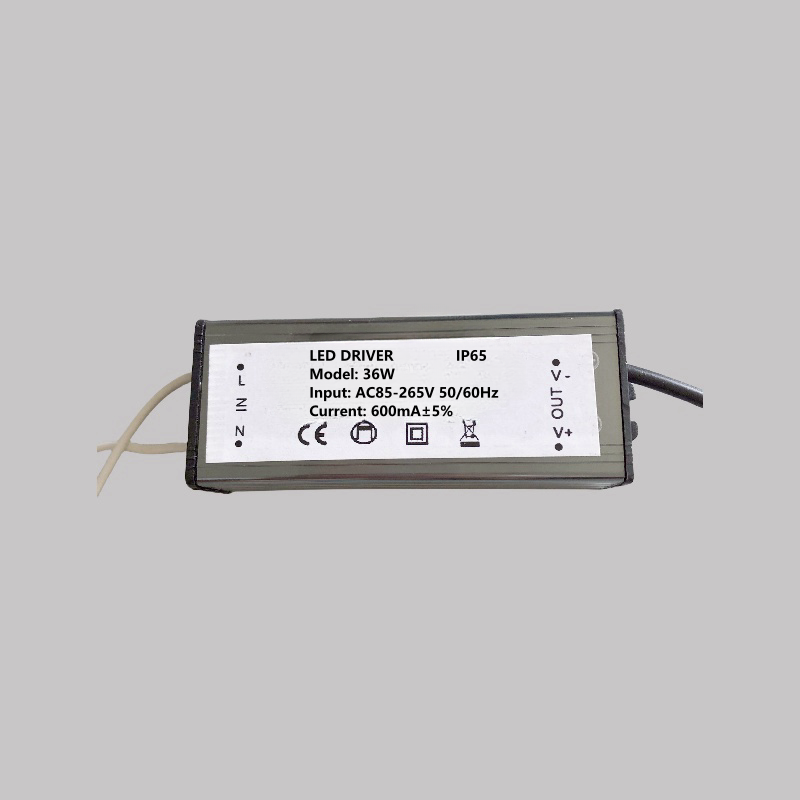

The IP65 driver:

2x4 led flat panel

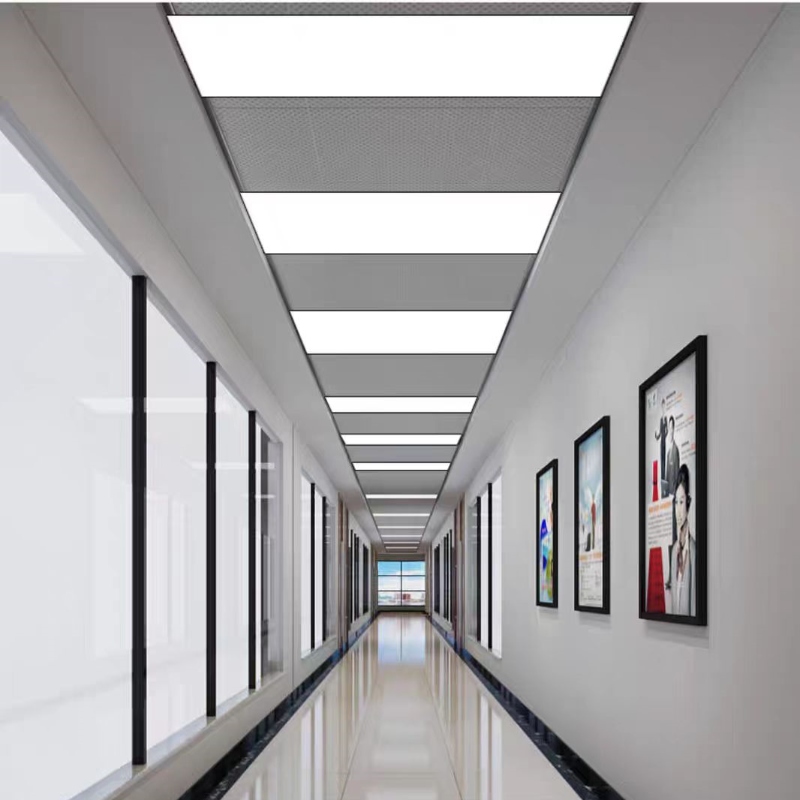

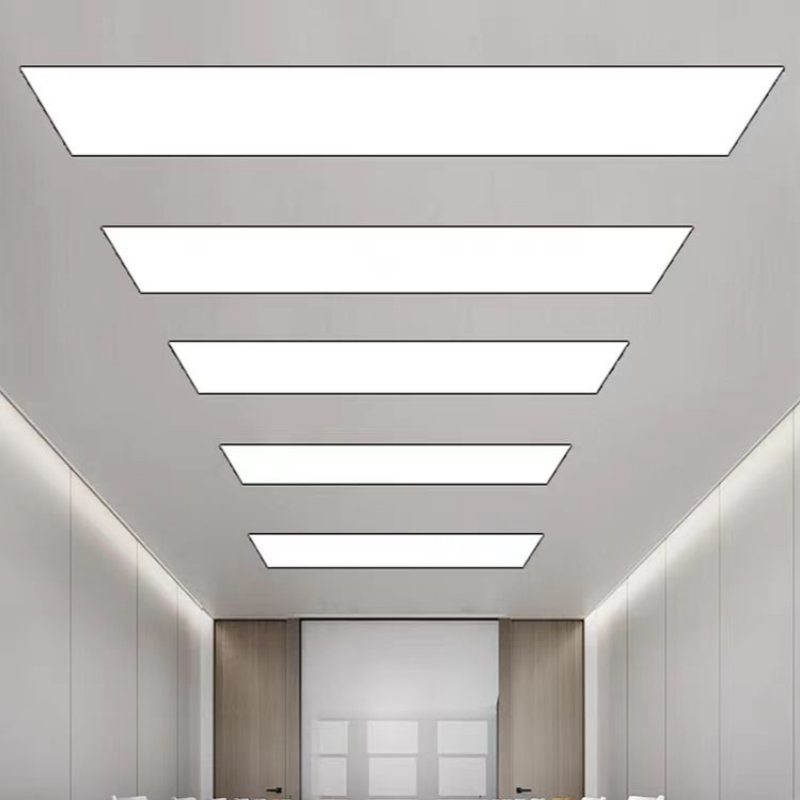

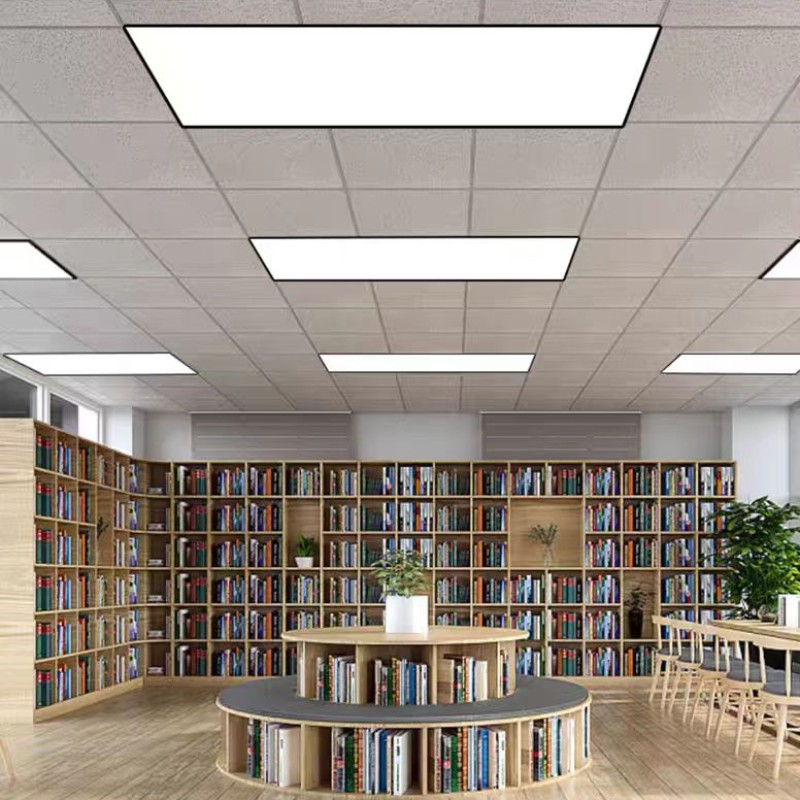

Applications for Reference:

2x4 led flat panel

2x4 led flat panel
