Introduction:
The 30X30 LED panel features an integrated flat frame design, giving it a simple and elegant appearance. It uses 4014 high-brightness LED chips and can reach 100lm/W. Its back cover is equipped with thickened edges to effectively retain the light within the lamp body, which increases the lumen flux. The size 30x30 is one of the compact LED panels ideal for home and commercial decoration and can be installed in kitchens, bathrooms, cloakrooms, balconies, tea rooms, and other places. Please get in touch with us for further assistance.
Specifications:
Dimension | 295*295*7mm |
Item | Edge-lit 30X30 LED panel |
Wattage | 24W |
LGP | PS 1.6mm |
Driver | Isolated |
PF | >0.9 |
Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 2160-2400lm |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
Warranty | 2years |
MOQ | 500pcs |
Packing | 1pc/brown inner box; 20pcs/brown master carton |
Accessories | 4pcs of pp corner protector; one page of instructions |

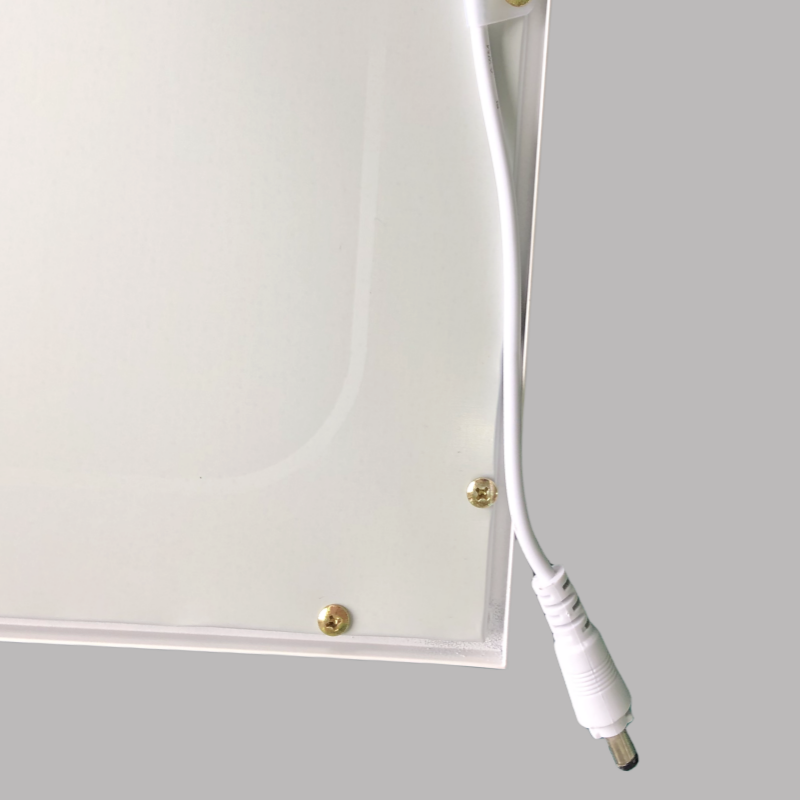

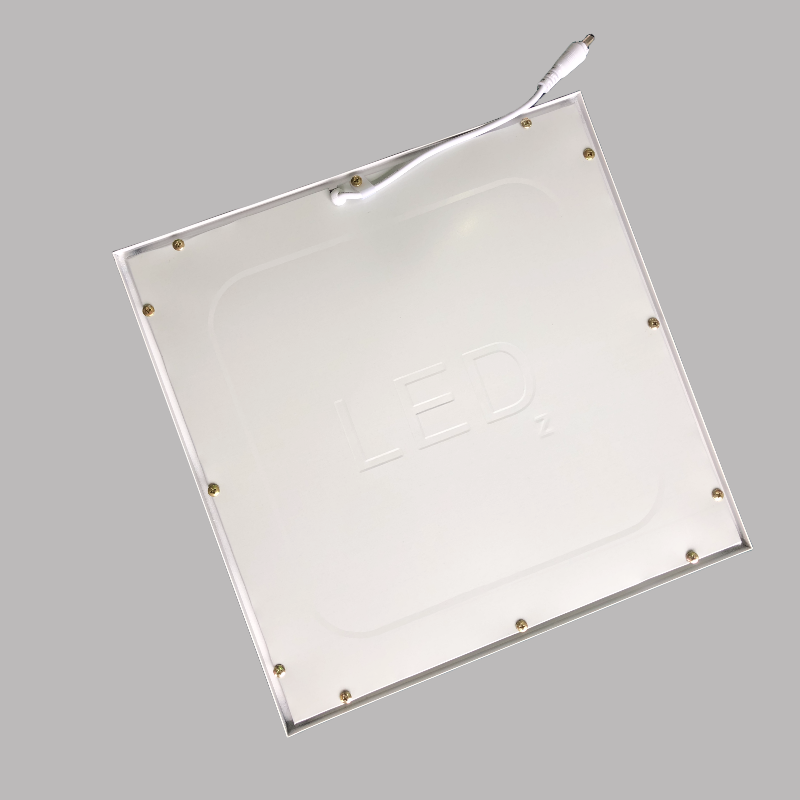

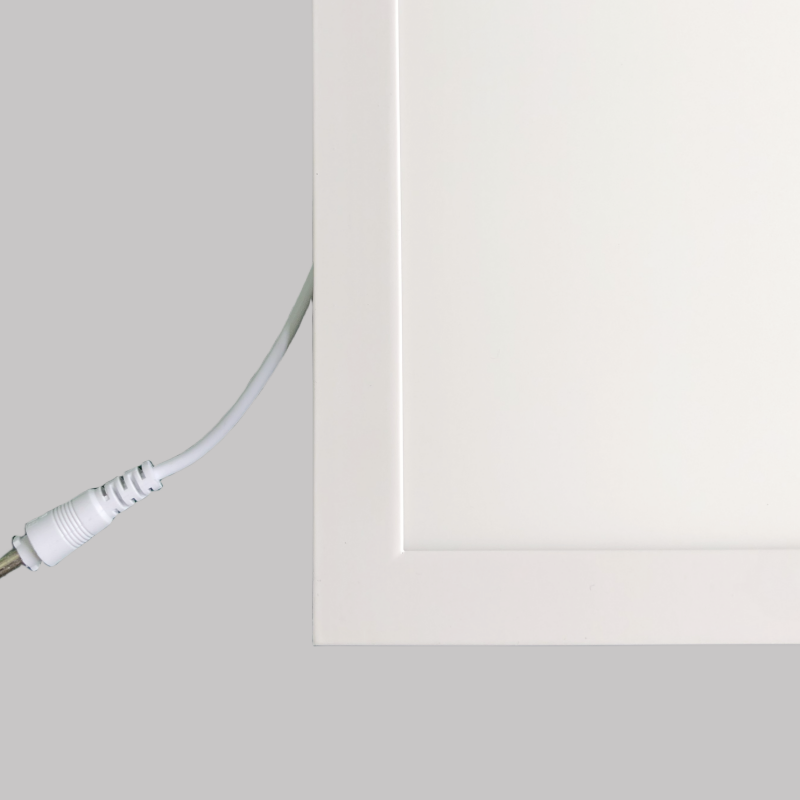

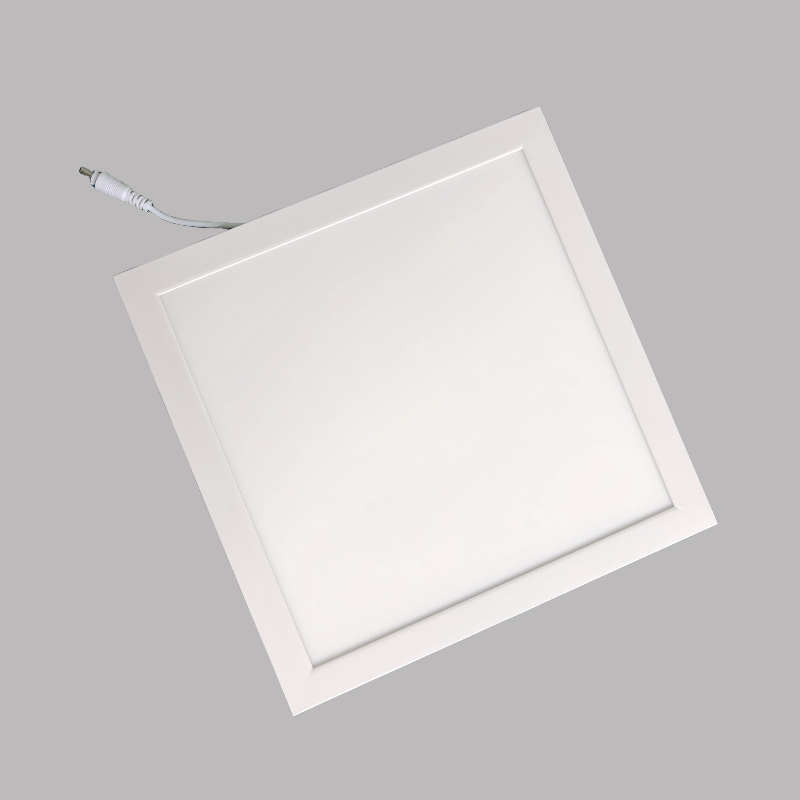

30X30 LED panel photographs:

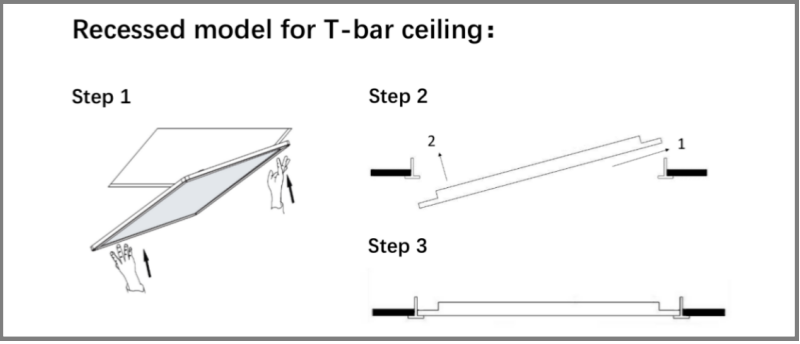

Installation Instructions:
Other Information:
Supply capacity: 120000 pcs/month
Delivery time: 30-35 days
Place of origin: Zhejiang, China
Port of loading: Shanghai or Ningbo port
Services：
1. Your inquiry regarding our products or prices will be answered within 24 hours.
2. Your order is always traceable in Tangtang Lighting.
3. Your sales area, design ideas, and private information are protected.
4. OEM and ODM are acceptable.
Size: 295*295*7mm
