Introduction:
This LED panel is a part of our high-end series of products that comply with EU export standards. It is equipped with a PMMA LGP that emits soft and stable light without any flicker, making it easy on the eyes. The total lumen flux can reach up to 4400-4600lm. This LED panel is suitable for environments with high lighting requirements, such as schools, offices, libraries, and similar places.
Specifications:
Dimension | 595*595*8mm |
Type | Edge-lit LED panel |
Wattage | 40W |
LGP | PMMA 2.0mm |
Driver | CE (EMC/LVD) Lifud |
PF | >0.9 |
Voltage | AC220-240V 50/60Hz |
CRI | >80Ra |
Lumen Flux | 4400-4600lm (Dark Room Testing) |
CCT | 3000K/4000K/6500K |
IP Rate | IP20 |
Warranty | 5years |
MOQ | 200pcs |
Packing | 1pc/brown inner box; 5pcs/brown master carton |
Accessories | 4pcs of foam corner protector; 4pcs parts; one page of instruction |

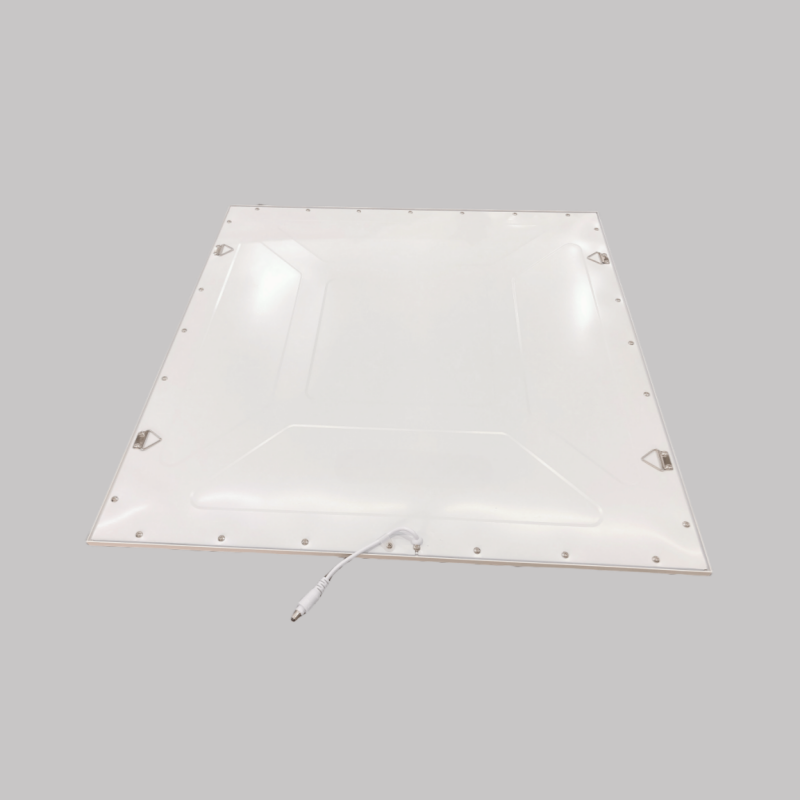

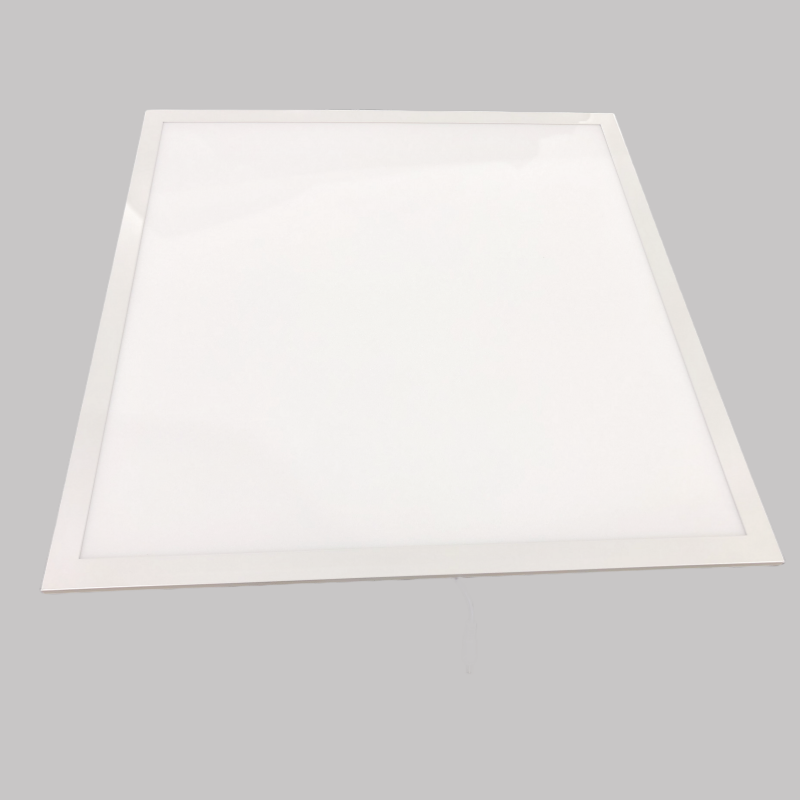

Photograph:

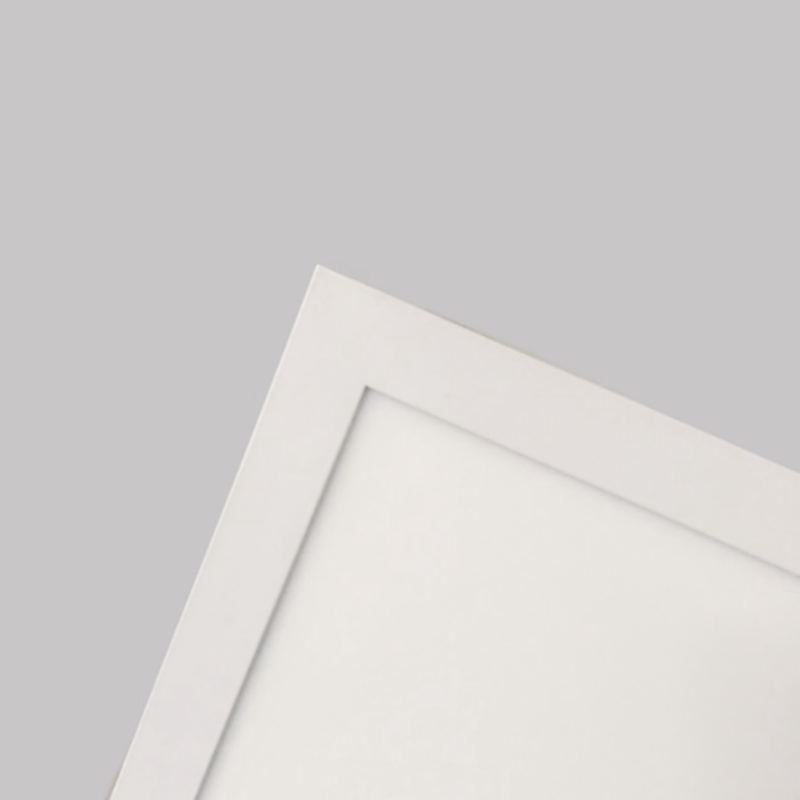

Thickened, flat aluminium frame.

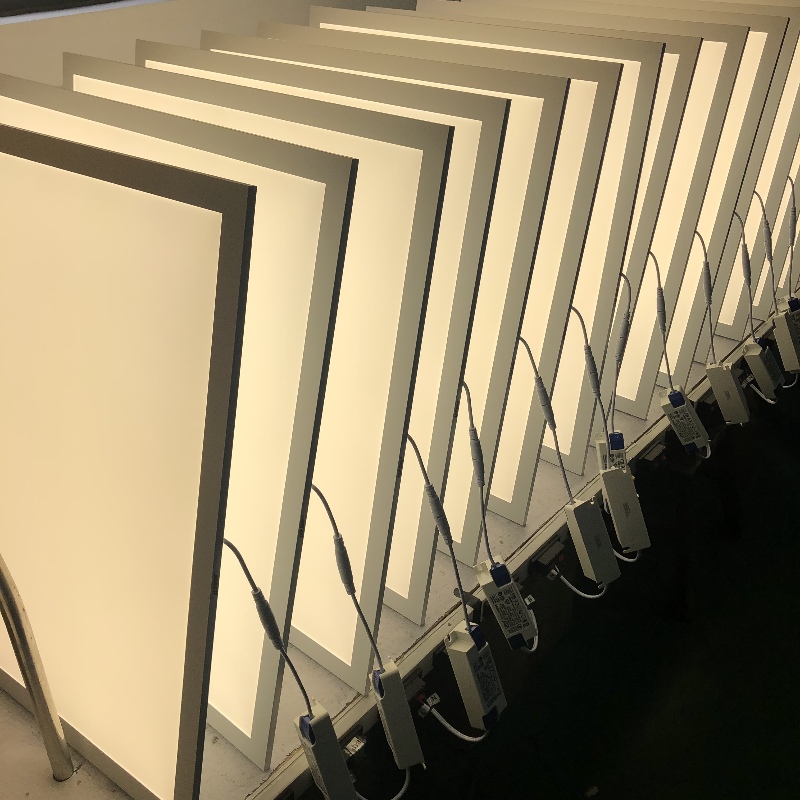

The process of the LED panel ageing:

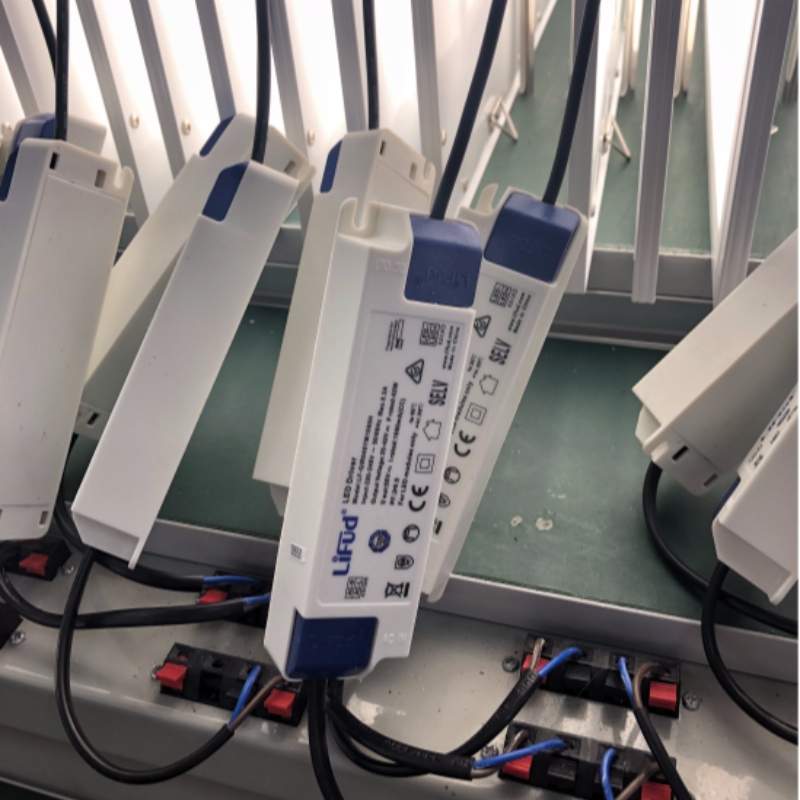

LED panel drivers: Lifud brand.

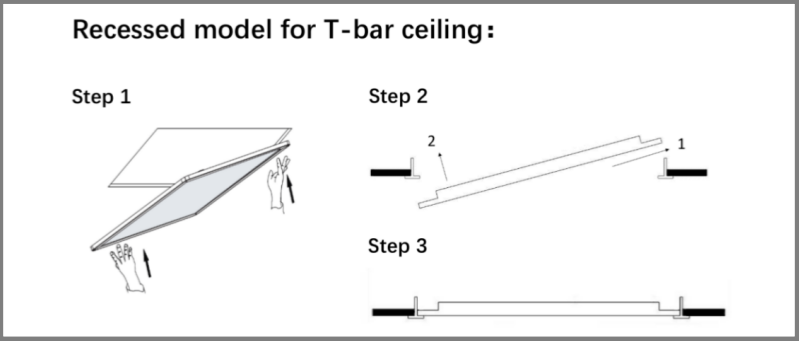

Installation Instructions:
Other Information:
Supply capacity: 120000 pcs/month
Delivery time: 30-35 days
Place of origin: Zhejiang, China
Port of loading: Shanghai or Ningbo port
Services：
1. Your inquiry regarding our products or prices will be answered within 24 hours.
2. Your order is always traceable in Tangtang Lighting.
3. Your sales area, design ideas, and private information are protected.
4. OEM and ODM are acceptable.
Body Materials: Aluminum& Iron
