Introduction:
Our slim LED panel with surface mount model is one of the most popular products. It is suitable for various applications such as offices, conference rooms, educational institutions, and residential spaces. The panel's aluminium frame provides structural stability and enhances heat dissipation, contributing to the slim LED panel's overall longevity and performance. Depending on your market requirements, you can choose between glass and PS materials for the LGP and an isolated or non-isolated driver. The model in the photograph features a PS LGP and a non-isolated driver.
Specifications:
Size | Φ120mm, Φ170mm, Φ200mm, Φ300mm |
Wattage | 6W, 12W, 18W, 24W |
Driver | Non-isolated |
PF | >0.5 |
Voltage | AC85-265V, 50/60Hz |
CRI | >80Ra |
Lumen | 80lm/W |
CCT | 2700K-6500K |
IP Rate | IP20 |
Warranty | 1year |
MOQ | 2000pcs each wattage |
Packing | 1pc/neutral color box; 100pcs-20pcs/brown master carton |

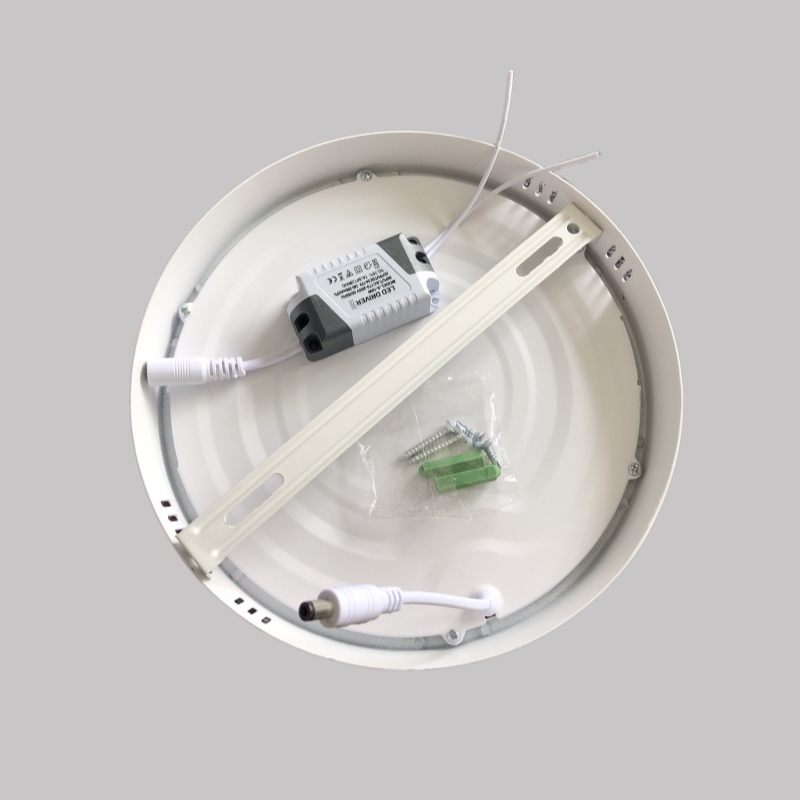

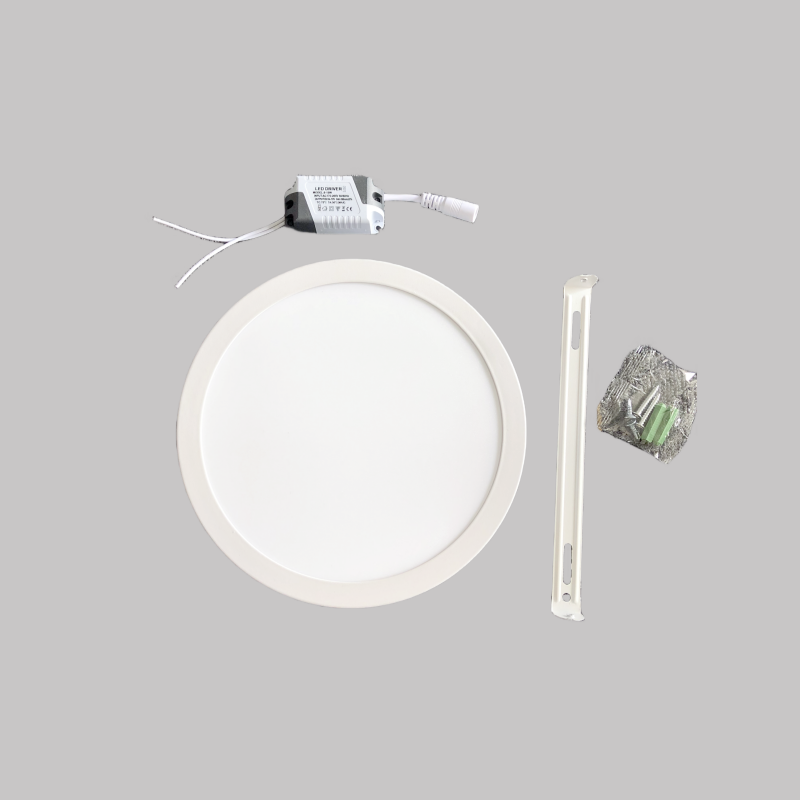

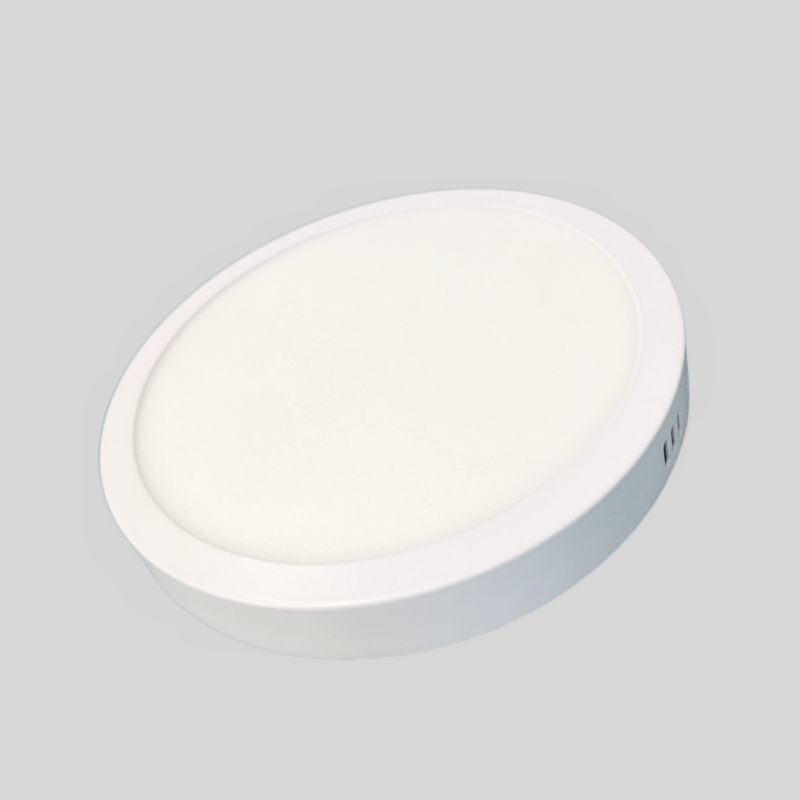

Photographs:
Size range: Φ120mm-Φ300mm
